Belimo 3G-OTH-68990 — Technical Specifications

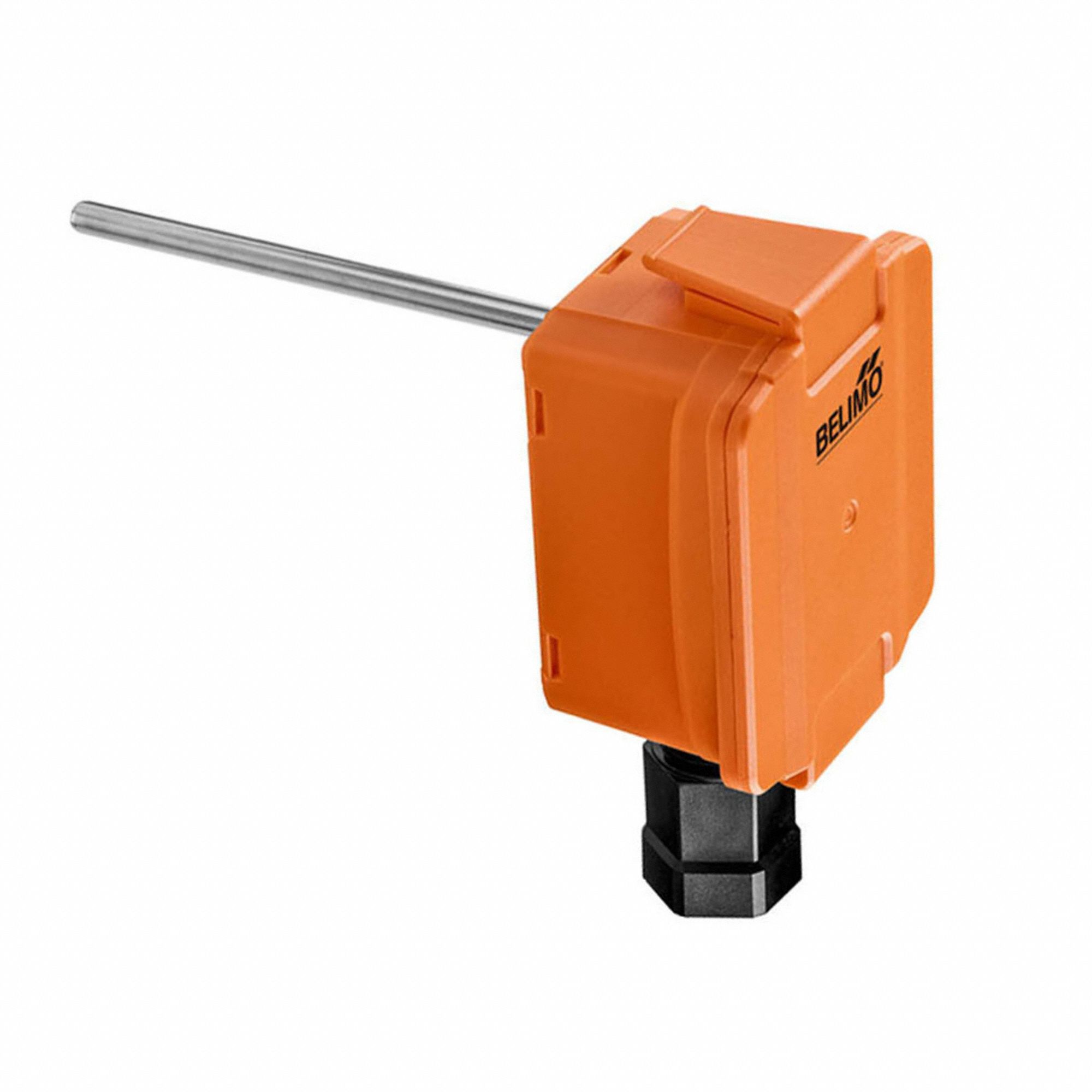

The BELIMO 22DT-54T is a duct-mount immersion temperature sensor with a 500 ohm platinum 4 to 20mA temperature signal and ±0.9°F accuracy at 70°F. It features a plastic housing, screw terminals, and includes screws for installation. The sensor operates within a -30°F to 480°F range and supports up to 95% relative humidity.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | -30°F to 480°F, 4 to 20mA, Polycarbonate, Single Measurement |
| Brand | BELIMO |
| Display | No Display |
| Housing | Plastic |
| Includes | Screws |
| Product Type | Immersion Temperature Sensor |
| Mounting Location | Duct Mount |
| Temperature Signal | 500 ohm Platinum 4 to 20mA |
| Temperature Accuracy | ±0.9°F at 70°F |
| Relative Humidity Range | 95% |
| Manufacturer Part Number | 22DT-54T |
| Temperature Signal Output | 4 to 20mA |
| Electrical Connection Type | Screw Terminals |
