Belimo 3G-OTH-68462 — Technical Specifications

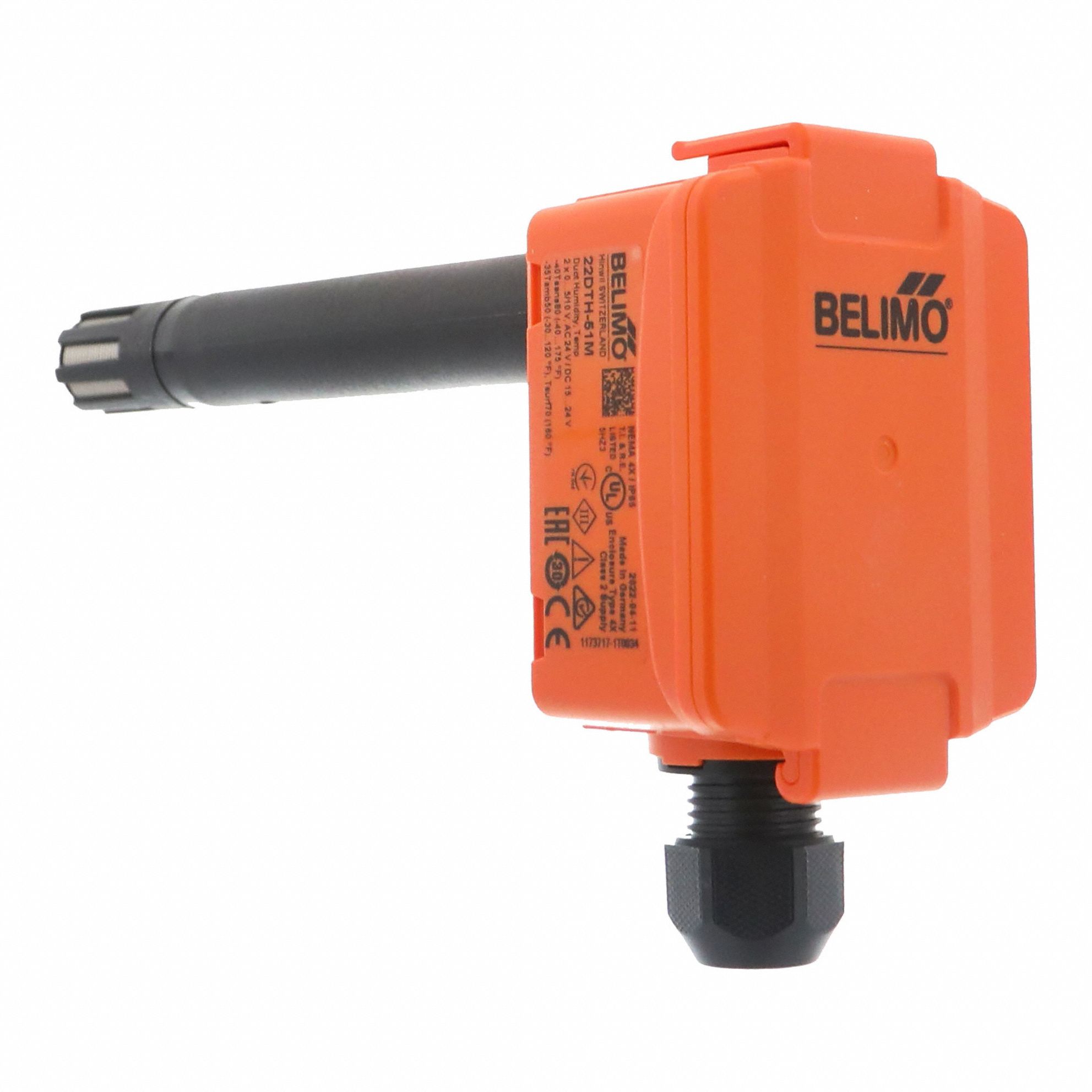

The BELIMO 22DTH-51M is a duct-mounted temperature and humidity sensor with a plastic housing and no display. It provides a temperature signal output of 0 to 10 V and 0 to 5 V, with a temperature accuracy of ±0.50°F over a -40°F to 200°F range. The sensor measures relative humidity up to 95% with an accuracy of ±2% from 0 to 80% RH at 77°F, and includes a 1/2 in NPT conduit adapter with screw terminal electrical connections.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | -40°F to 200°F, 0 to 10 V/0 to 5 V, Polycarbonate, Plastic |
| Brand | BELIMO |
| Display | No Display |
| Housing | Plastic |
| Includes | 1/2 in NPT Conduit Adapter |
| Product Type | Duct Temperature and Humidity Sensor |
| Mounting Location | Duct Mount |
| Temperature Signal | 10 kohm All-Polymer 0 to 5 V |
| Temperature Accuracy | ±0.50°F |
| Relative Humidity Range | 95% |
| Manufacturer Part Number | 22DTH-51M |
| Temperature Signal Output | 0 to 10 V |
| Electrical Connection Type | Screw Terminals |
| Relative Humidity Accuracy | ±2% 0 to 80% RH @ 77°F |
