Bell & Gossett 3G-OTH-70165 — Technical Specifications

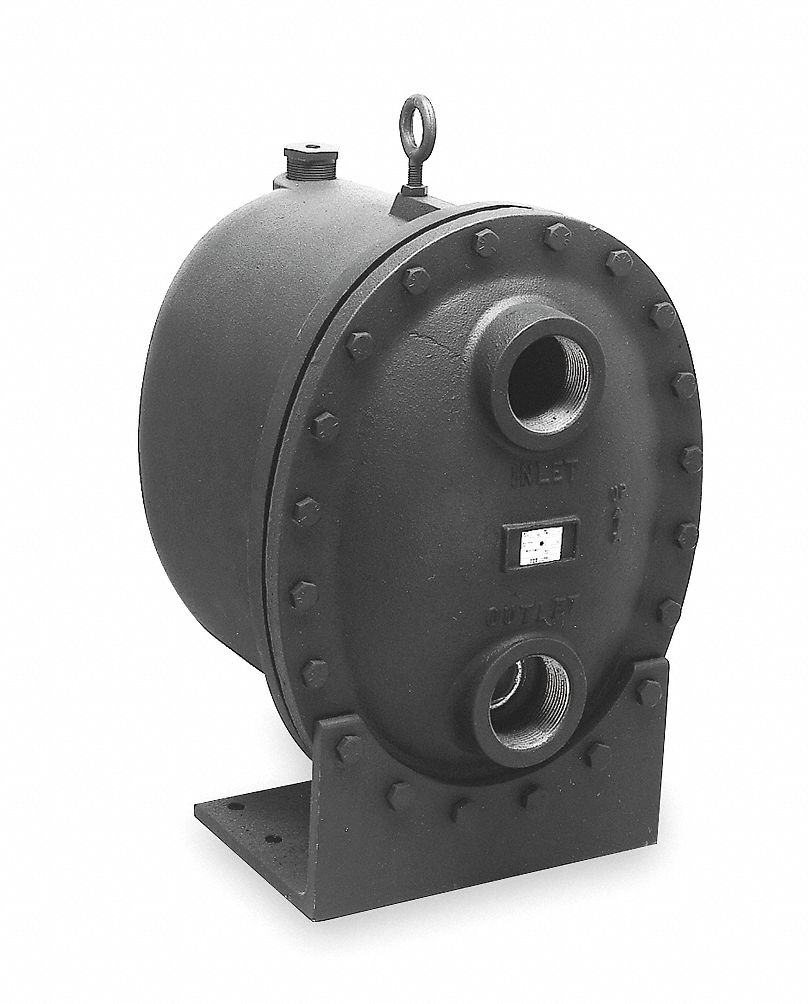

The BELL & GOSSETT Steam Trap is a Cast Iron C-Pattern Float & Thermostatic Steam Trap, model FT015C-8. It features a cast iron float, a 2-inch FNPT connection, a maximum capacity of 10,900 lb/hr, a maximum pressure of 15 psi, and a maximum temperature of 377°F. This unit is designed for horizontal installation and is part of the manufacturer's C series.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 2 in |
| Max. | 15 psi |
| Type | 10,900 lb/hr, C Pattern |
| Brand | BELL & GOSSETT |
| Float Material | Cast Iron |
| Manufacturer Series | C |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FT015C-8 |
