Big Beam 3G-OTH-387104 — Technical Specifications

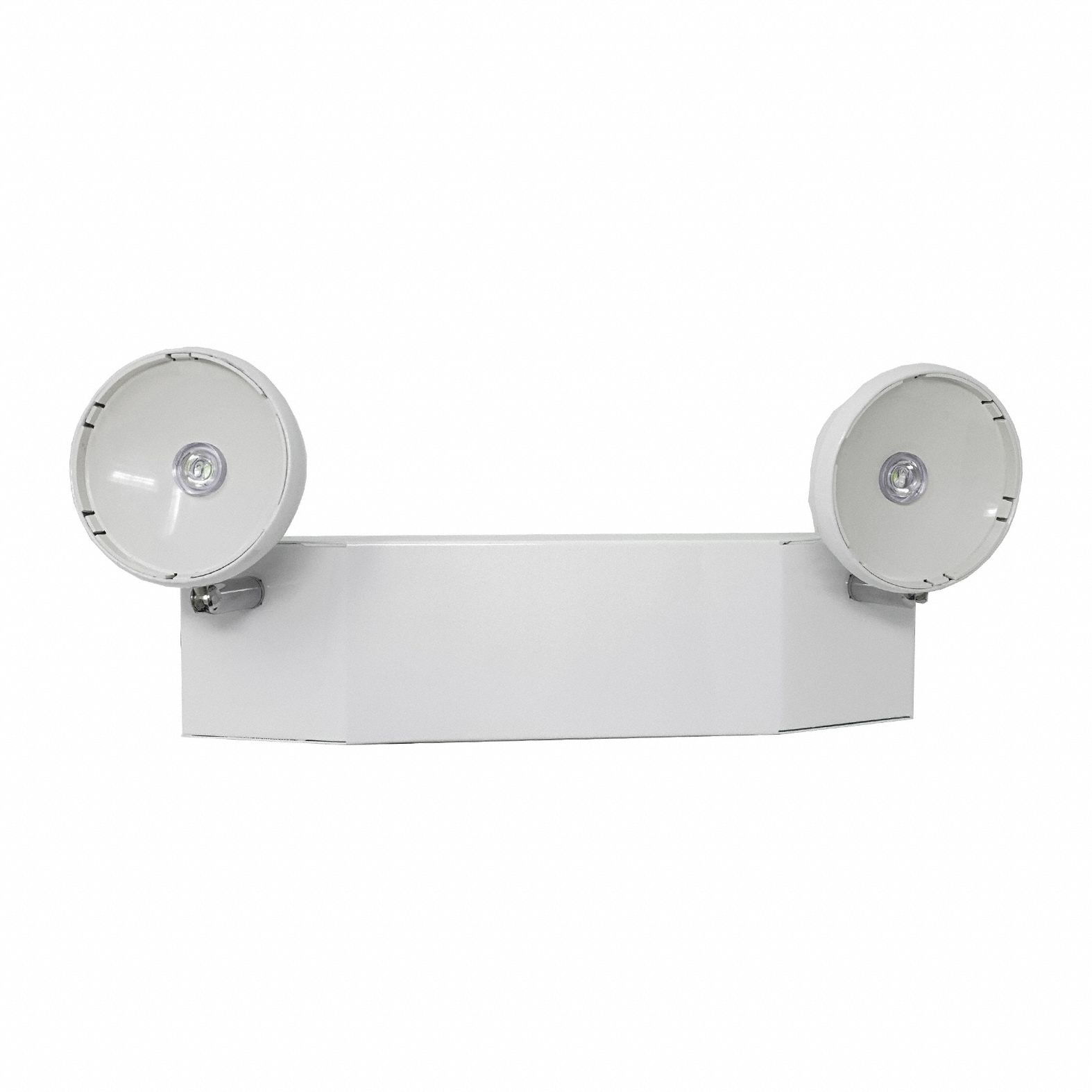

The BIG BEAM Laser Series LASER-LM-P2 is a plug-in LED emergency light with a surface-mount steel housing in white. It operates on 120/277V AC input, features a 3 W lamp wattage and 12 W emergency wattage, and is UL Listed to UL 924 standards. The unit includes adjustable lamp heads, remote capability, and a Lock Out (Automatic Battery Connect) feature.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120/277V |
| Type | UL 924, Surface, White, Steel |
| Brand | BIG BEAM |
| Series | Laser |
| Features | Lock Out (Automatic Battery Connect) |
| Lamp Watt | 3 W |
| Standards | UL Listed |
| Housing Color | White |
| Input Voltage | 120/277V AC |
| Mounting Type | Surface |
| Emergency Watt | 12 W |
| Remote Capable | Yes |
| Housing Material | Steel |
| Self Diagnostics | No |
| Lighting Technology | LED |
| Environmental Rating | UL 924 |
| Adjustable Lamp Heads | Yes |
| Manufacturer Part Number | LASER-LM-P2 |
