Bob 3G-OTH-438771 — Technical Specifications

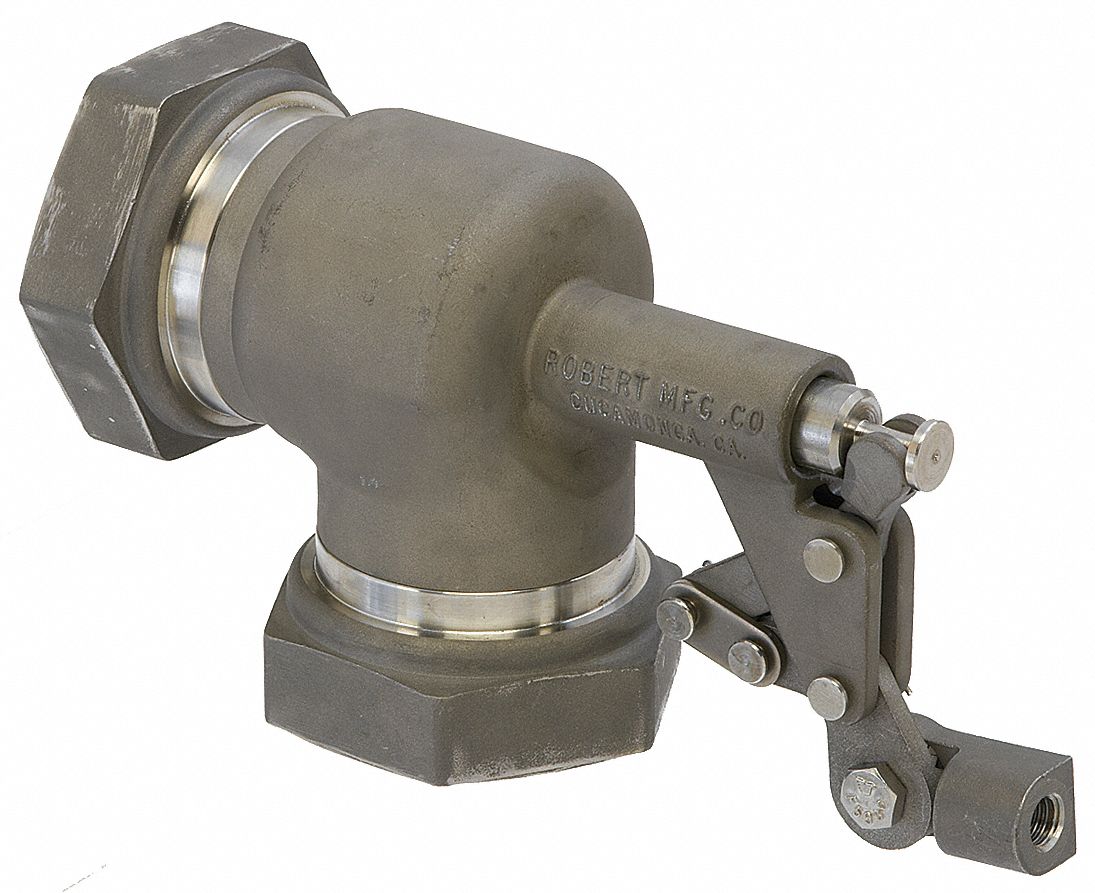

The BOB R1380-1-1/2 is a general service float valve body for water media, featuring an angle valve body style with adjustable arm and horizontal piping mounting. It has a flow rate of 180 gpm @ 85 psi, with 1-1/2" FIP inlet and outlet connections (female IPS). This float valve body is supplied without float and rod.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Angle Valve Body, Float Valve Body, Horizontal Piping, FIP, Female |
| Brand | BOB |
| Mounting | Horizontal Piping |
| Flow Rate | 180 gpm @ 85 psi |
| For Media | Water |
| Rod Thread | 3/8"-16 |
| Valve Series | R1380 |
| Float Valve Type | Float Valve Body |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | FIP |
| Includes Float And Rod | No Float and Rod |
| Outlet Connection Type | FIP |
| Connection Type - Side 1 | IPS |
| Connection Type - Side 2 | IPS |
| Manufacturer Part Number | R1380-1-1/2 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
