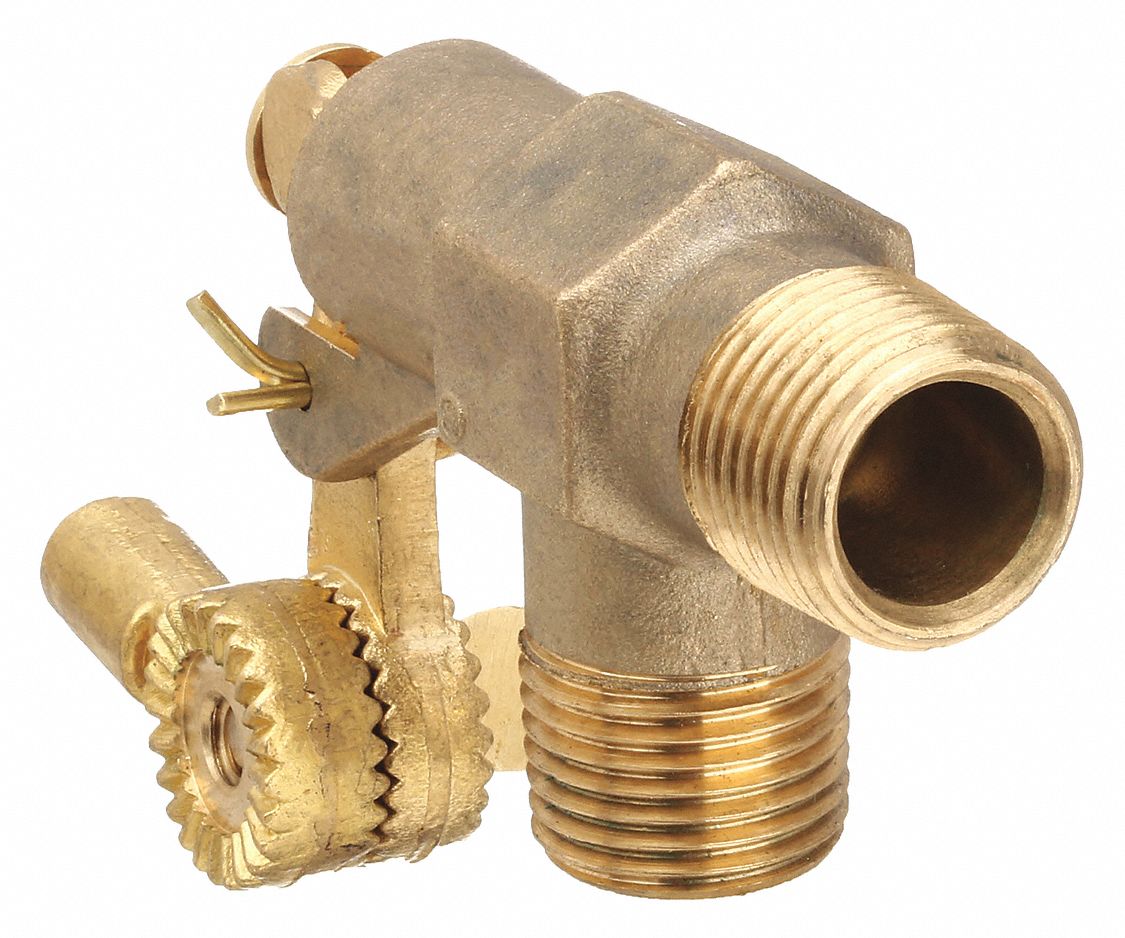

Bob 3G-OTH-438751 — Technical Specifications
The BOB R400-3/8 is a general service float valve body for water media, featuring an angle valve body style with adjustable arm and horizontal piping mounting. It has 1/4"-20 rod threads, male NPT inlet and outlet connections, and a flow rate of 9 gpm at 35 psi. This float valve body is supplied without a float and rod.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Angle Valve Body, Float Valve Body, Horizontal Piping, Brass, MNPT |
| Brand | BOB |
| Mounting | Horizontal Piping |
| Flow Rate | 9 gpm @ 35 psi |
| For Media | Water |
| Rod Thread | 1/4"-20 |
| Valve Series | R400 |
| Float Valve Type | Float Valve Body |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | MNPT |
| Includes Float And Rod | No Float and Rod |
| Outlet Connection Type | MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | R400-3/8 |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Male |
