Bob 3G-OTH-450048 — Technical Specifications

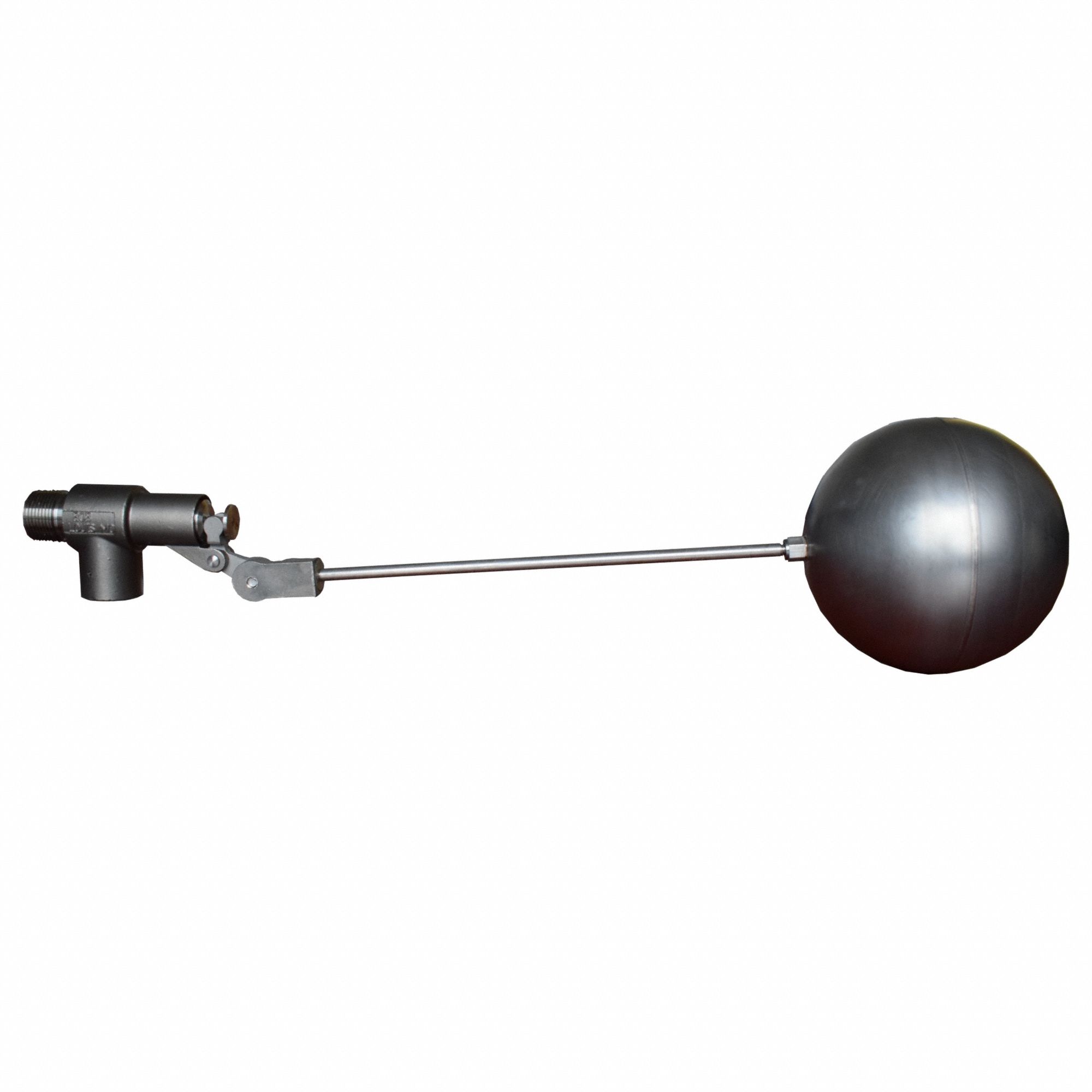

The BOB Float Valve Assembly (SKU 803HH4, MPN R1360-3/4-5) is a general service float valve assembly for water media, featuring an angle valve body and adjustable arm. Designed for horizontal piping, it includes a rod and float, with a 1/4"-20 rod thread and a flow rate of 37.5 gpm @ 35 psi. The inlet connection is male NPT, and the outlet is female NPT.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Angle Valve Body, Cylindrical, Horizontal Piping, MNPT |
| Brand | BOB |
| Mounting | Horizontal Piping |
| Flow Rate | 37.5 gpm @ 35 psi |
| For Media | Water |
| Rod Thread | 1/4"-20 |
| Valve Series | R1360 |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | MNPT |
| Includes Float And Rod | Float and Rod Included |
| Outlet Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | R1360-3/4-5 |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Female |
