Bobby 3G-OTH-436094 — Technical Specifications

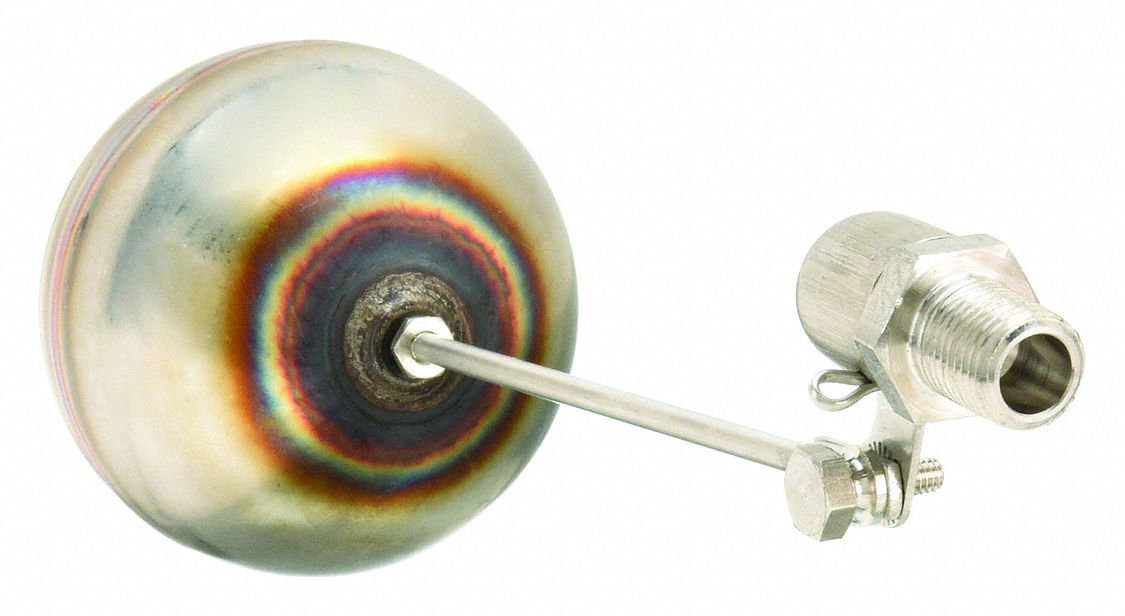

The BOBBY Float Valve Assembly (SKU 23MJ89) is a food-grade and sanitary float valve assembly designed for water media. It features an angle valve body with a 1/4 in MNPT inlet connection, bulkhead mounting, and an adjustable arm. This assembly includes a float and rod, meets NSF/ANSI 169 Special Purpose Food Equipment & Device standards, and delivers a flow rate of 2.25 gpm @ 85 psi.
Technical Specifications
| Parameter | Value |
|---|---|
| MNPT | 1/4 in |
| Type | Angle Valve Body, Rectangular, Bulkhead |
| Brand | BOBBY |
| Mounting | Bulkhead |
| Flow Rate | 2.25 gpm @ 85 psi |
| For Media | Water |
| Standards | NSF/ANSI 169 Special Purpose Food Equipment & Device |
| Valve Series | RM262 |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | MNPT |
| Includes Float And Rod | Float and Rod Included |
| Connection Type - Side 1 | NPT |
| Manufacturer Part Number | RM262-N |
| Connection Gender - Side 1 | Male |
