Brad Harrison 3G-OTH-08670 — Technical Specifications

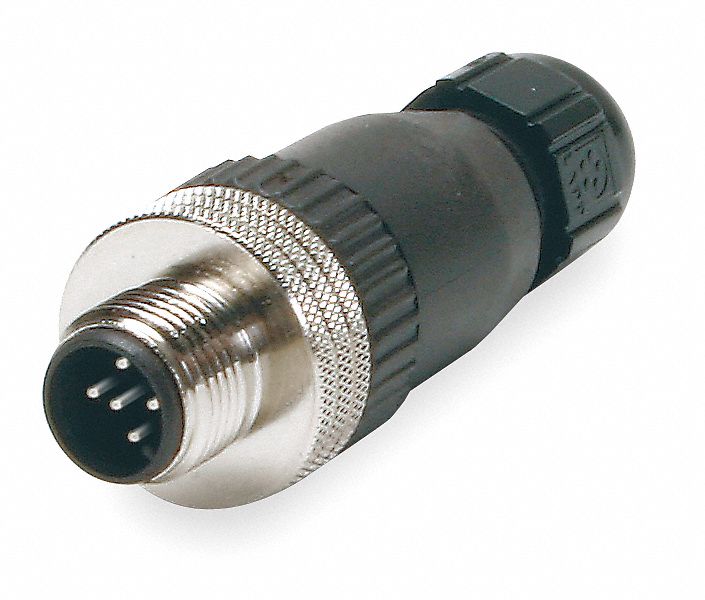

The BRAD HARRISON External Thread Connector: 5 Pin is an M12 circular connector with a pin-type body, designed for power applications. It features a straight, male-threaded mounting style, a cable connection, and an IP67 rating. The housing is made of polyamide, and the connector is intended for general sensor applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12 Straight Connector, IP67, Straight, Polyamide |
| Brand | BRAD HARRISON |
| IP Rating | IP67 |
| Application | Power |
| Thread Size | M12 |
| Mounting Type | Male Threaded |
| Mounting Style | Straight Connector |
| Connection Type | Cable |
| Housing Material | Polyamide |
| Connector Body Type | Pin |
| Connector Application | For General Sensor Applications |
| Connector Orientation | Straight |
| Manufacturer Part Number | 8A5006-31 |
