Burndy 3G-OTH-28912 — Technical Specifications

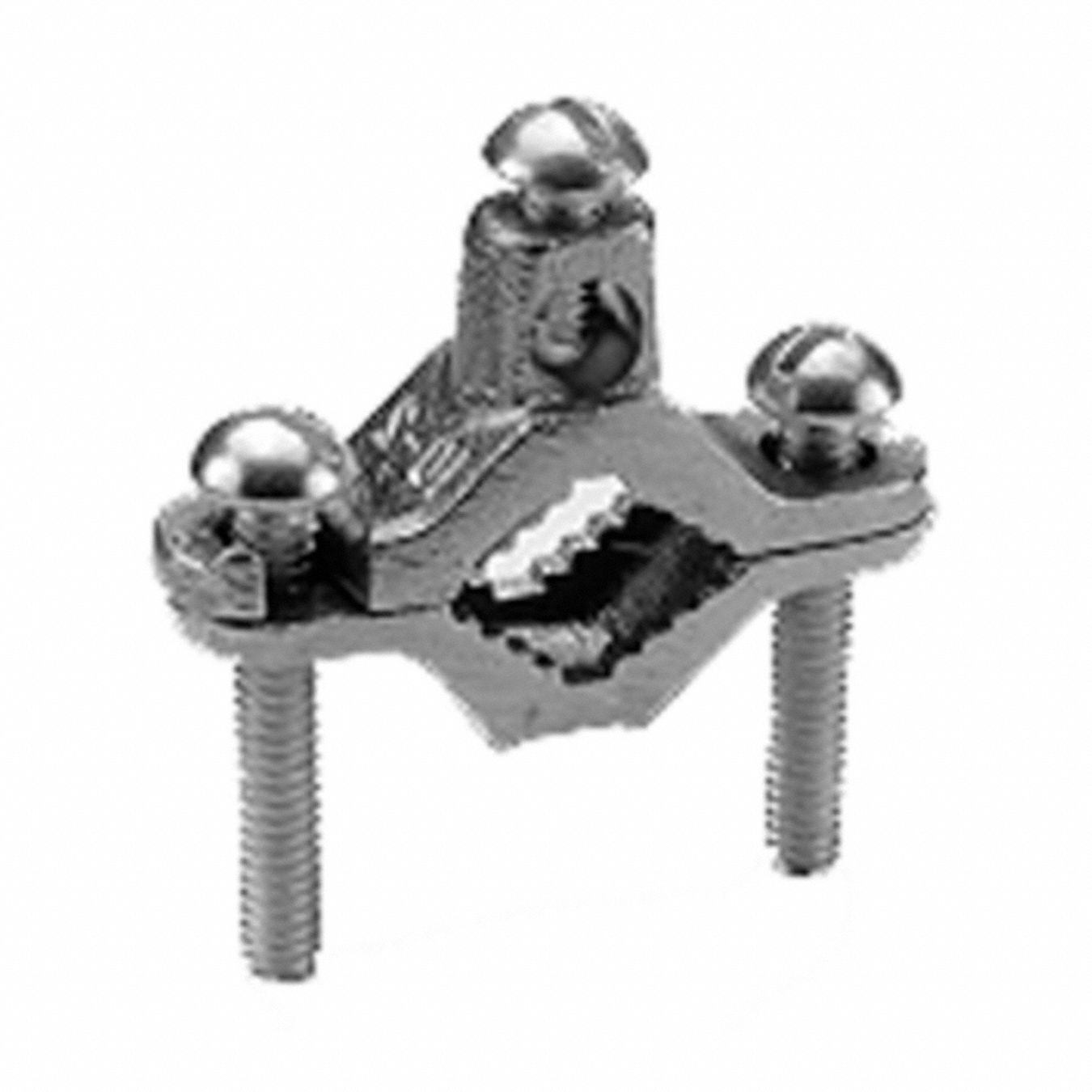

The BURNDY C22D is a bronze pipe ground clamp designed for direct burial applications. It connects 10 to 2 AWG stranded copper conductors to pipes ranging from 1-1/4 in to 2 in. This grounding connector is suitable for use with copper conductors.
Technical Specifications
| Parameter | Value |
|---|---|
| Pipe | 1 1/4 in to 2 in |
| Type | Direct Burial, 10 AWG SOL to 2 AWG STR |
| Brand | BURNDY |
| Material | Bronze |
| For Use With | Copper Conductor |
| Grounding Wire Size | 10 to 2 AWG STR |
| Manufacturer Part Number | C22D |
| Description/Special Features | Direct Burial |
| Grounding Wires Connected To | 1-1/4 in to 2 in Pipe |
