Calbrite 3G-OTH-04705 — Technical Specifications

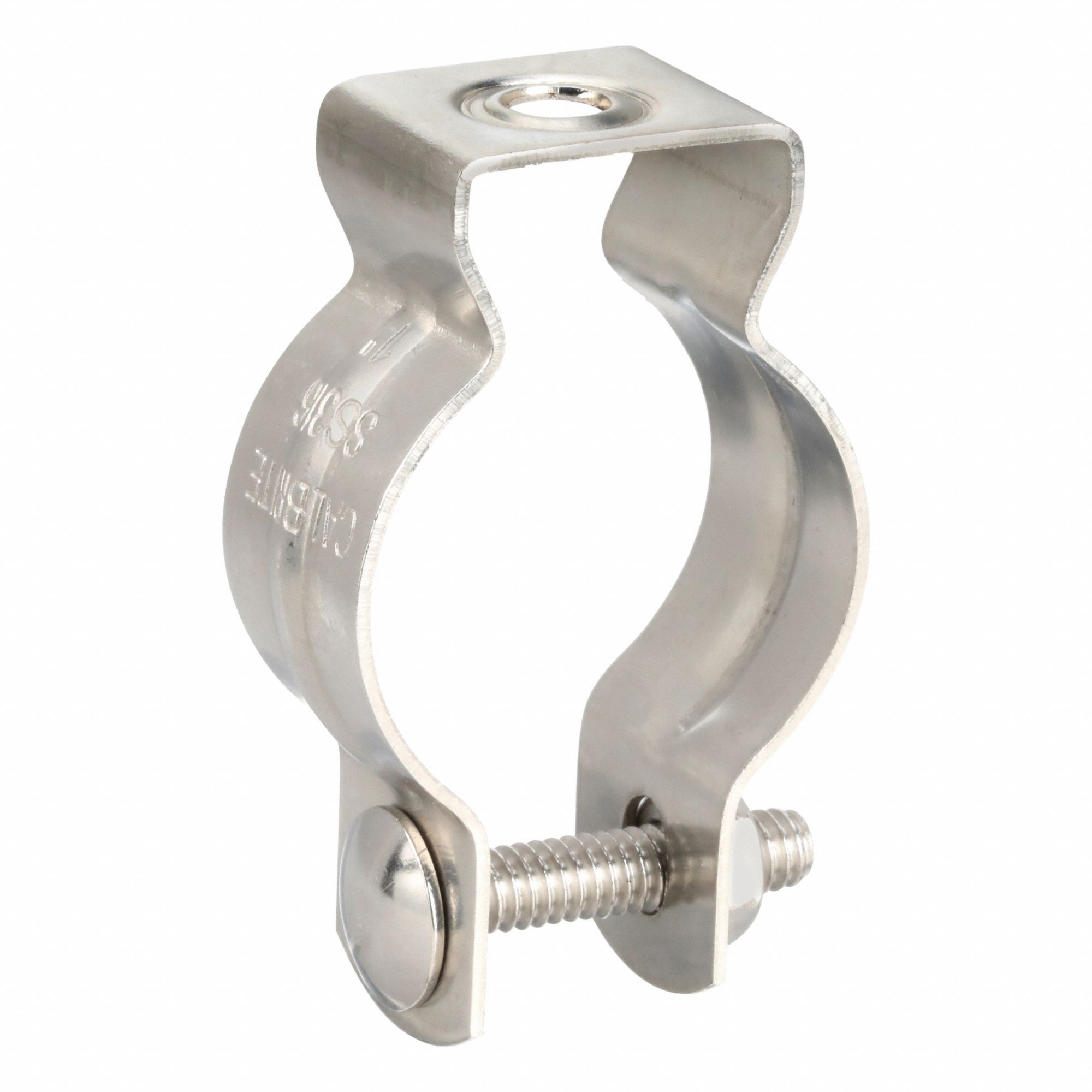

The CALBRITE Conduit & Cable Hanger (SKU 36HX16) is a stainless steel hanger for 1-inch IMC or RMC conduit and pipe. It features a polished finish, a 7/8-inch overall width, a 2-5/8-inch overall length, a 0.06-inch steel thickness, a 1-1/8-inch flange thickness, and a 0.25-inch mounting hole diameter. Designed for horizontal mounting, it is suitable for indoor/outdoor use.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | - Screw-On: 1 in Trade Size, 1 1/8 in, Stainless Steel, S61000MH00 |
| Finish | Polished |
| UNSPSC | 39121701 |
| Material | Stainless Steel |
| Overall Width | 7/8 in |
| Overall Length | 2-5/8 in |
| Steel Thickness | 0.06 in |
| Flange Thickness | 1-1/8 in |
| Country Of Origin | China (subject to change) |
| Compatible Pipe Size | 1 in |
| Indoor/Outdoor Usage | Indoor/Outdoor |
| Mounting Orientation | Horizontal |
| Mounting Hole Diameter | 0.25 in |
| Compatible Conduit Type | IMC |
| Manufacturer Part Number | S61000MH00 |
| Compatible Conduit Trade Size | 1 in |
| Compatible Nominal Conduit/Pipe Size | 1 in |
Physical & Shipping Data
| Weight | 0.045 kg |
| Country of Origin | China |
