Canarm 3G-OTH-80138 — Technical Specifications

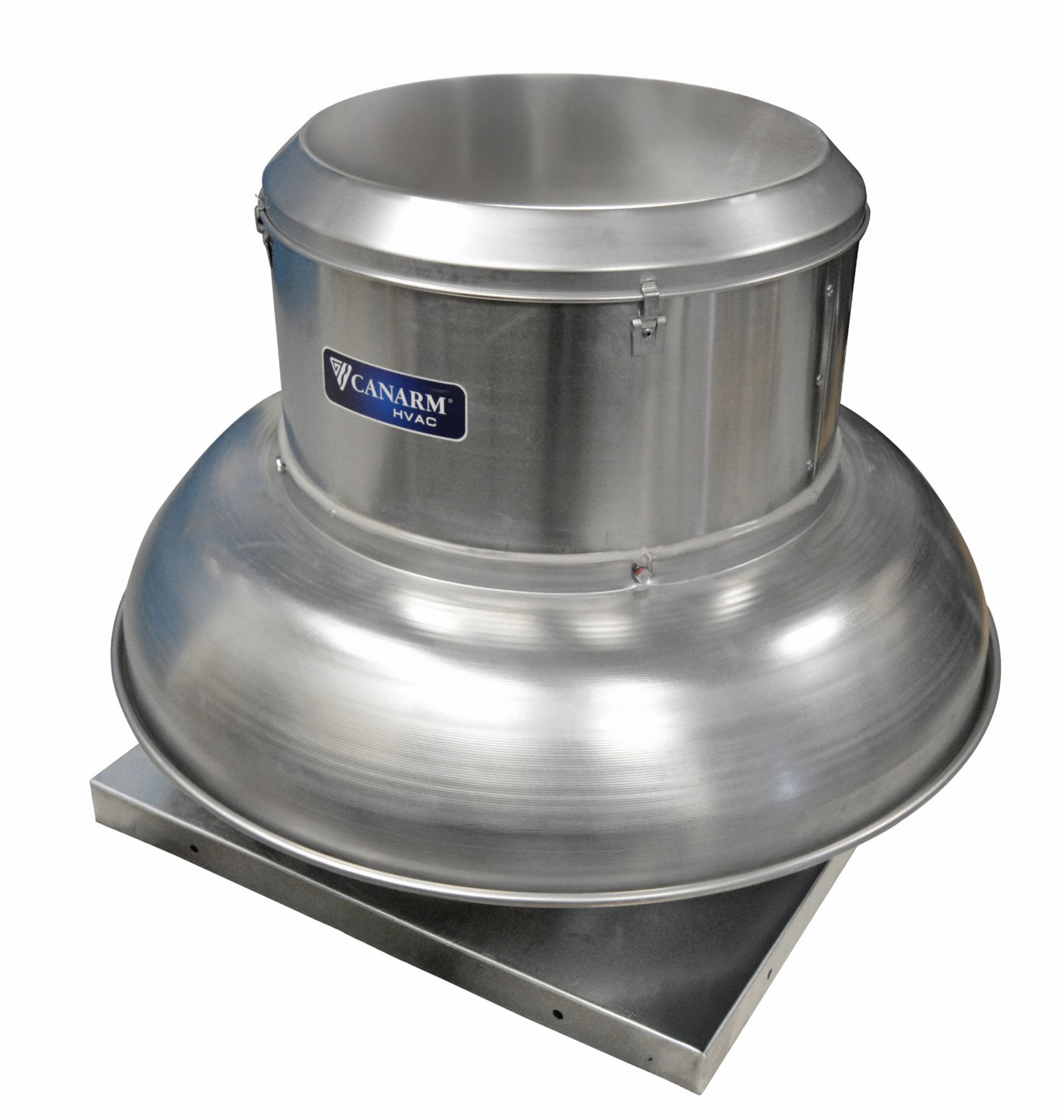

The CANARM Centrifugal Downblast Roof Exhaust Fan: Belt Drive (SKU 394VT9, MPN ALX165DB30100P) is a clean air belt-drive fan with drive, assembled with a square base and a 16 1/2 in wheel. It delivers 2,697 cfm exhaust airflow, operates on 575V AC with a single-speed, open dripproof, standard-efficiency motor, and is designed for high-static pressure applications on roof and wall mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | CANARM |
| Assembly | Assembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | 1 |
| Mounting Location | Roof and Wall |
| Nameplate Voltage | 575V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | ALX165DB30100P |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | Yes |
