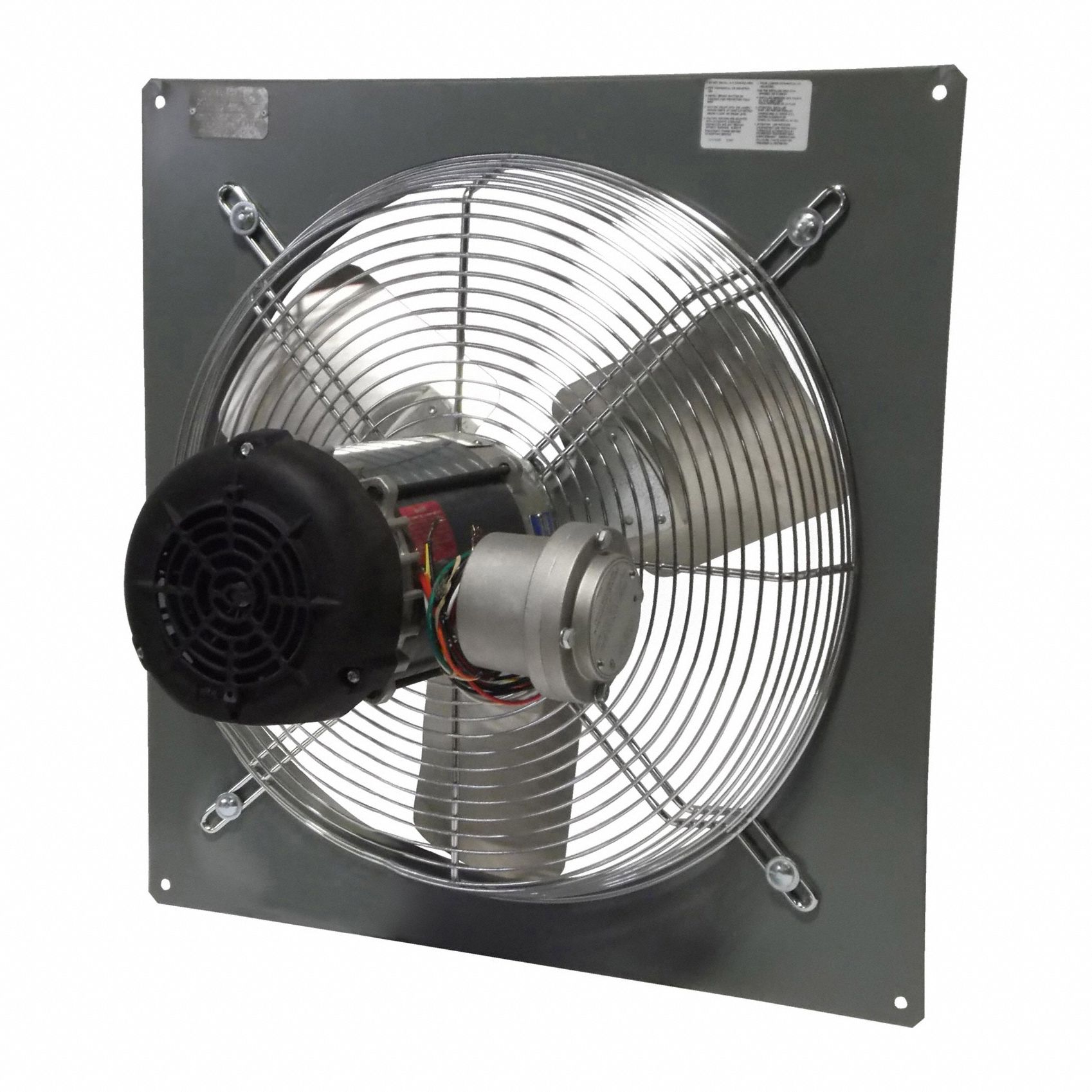

Canarm 3G-OTH-80469 — Technical Specifications
The CANARM Panel Fan: Direct Drive (SKU 788N56, MPN P18-4M) is a hazardous location direct-drive panel exhaust fan with an 18-inch blade, 1/3 hp, and 3,200 cfm at 230/460V AC, three-phase. It features a powder-coated steel frame, a totally enclosed air-over motor with Class 1 insulation, and variable-speed operation. This assembled unit is rated for Class I, Div 1, Groups C and D, and Class II, Div 1, Groups F and G, and includes intake guards.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | 1/3 hp, 3,200 cfm, 3 ph, Totally Enclosed |
| Blade | 18 in |
| Brand | CANARM |
| Assembled | Assembled |
| Guard Type | Intake |
| Motor Type | DC |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed Air Over |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class 1 |
| Number Of Speeds | Variable |
| Nameplate Voltage | 230/460V AC |
| Guard Type Subheads | With Intake Guards |
| Hazardous Location Class | Class I, Div 1, Group C and D |
| Manufacturer Part Number | P18-4M |
