Canarm 3G-OTH-80251 — Technical Specifications

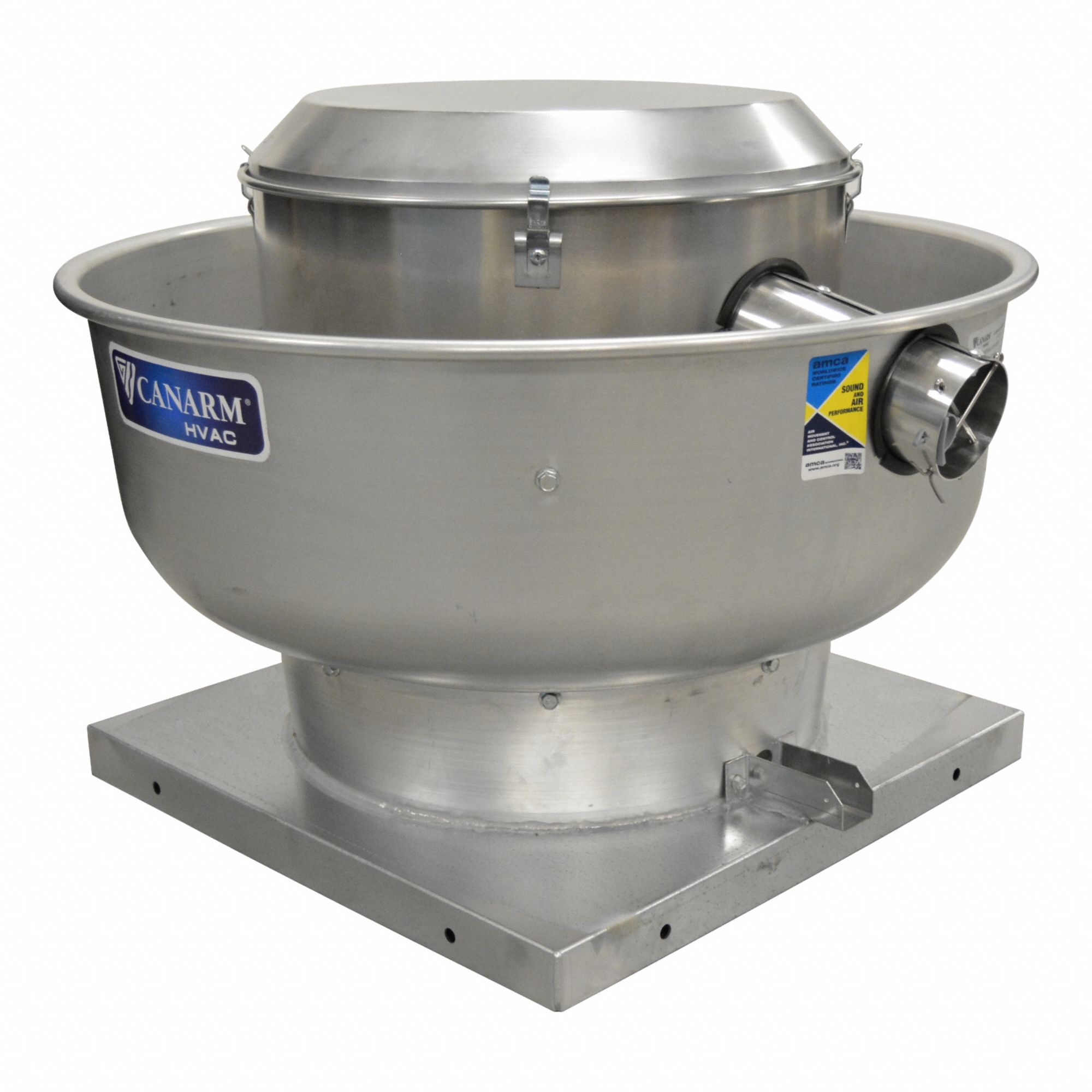

The CANARM Upblast Exhauster: Direct Drive (SKU 801MV2, MPN ALX150-UD100EC) is a kitchen air direct-drive fan designed for roof and wall mounting. It features an electronically commutated motor with an Open Dripproof enclosure, a square base, and variable-speed operation on 115/208-230V AC. This assembled unit includes a drive package and is rated for high-static-pressure applications, with exhaust airflow ranges of 2,000 to 4,999 cfm at both 0.000 in SP and 0.500 in SP.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 2,544 cfm, ODP, 1 hp, 1-ph |
| Brand | CANARM |
| Wheel | 15 in |
| Assembly | Assembled |
| Base Shape | Square |
| Motor Type | Electronically Commutated |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | High-Efficiency Motor |
| Number Of Speeds | Variable |
| Mounting Location | Roof and Wall |
| Nameplate Voltage | 115/208-230V AC |
| High-Efficiency Motor | Yes |
| Includes Drive Package | Yes |
| Manufacturer Part Number | ALX150-UD100EC |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | Yes |
