Canarm 3G-OTH-79198 — Technical Specifications

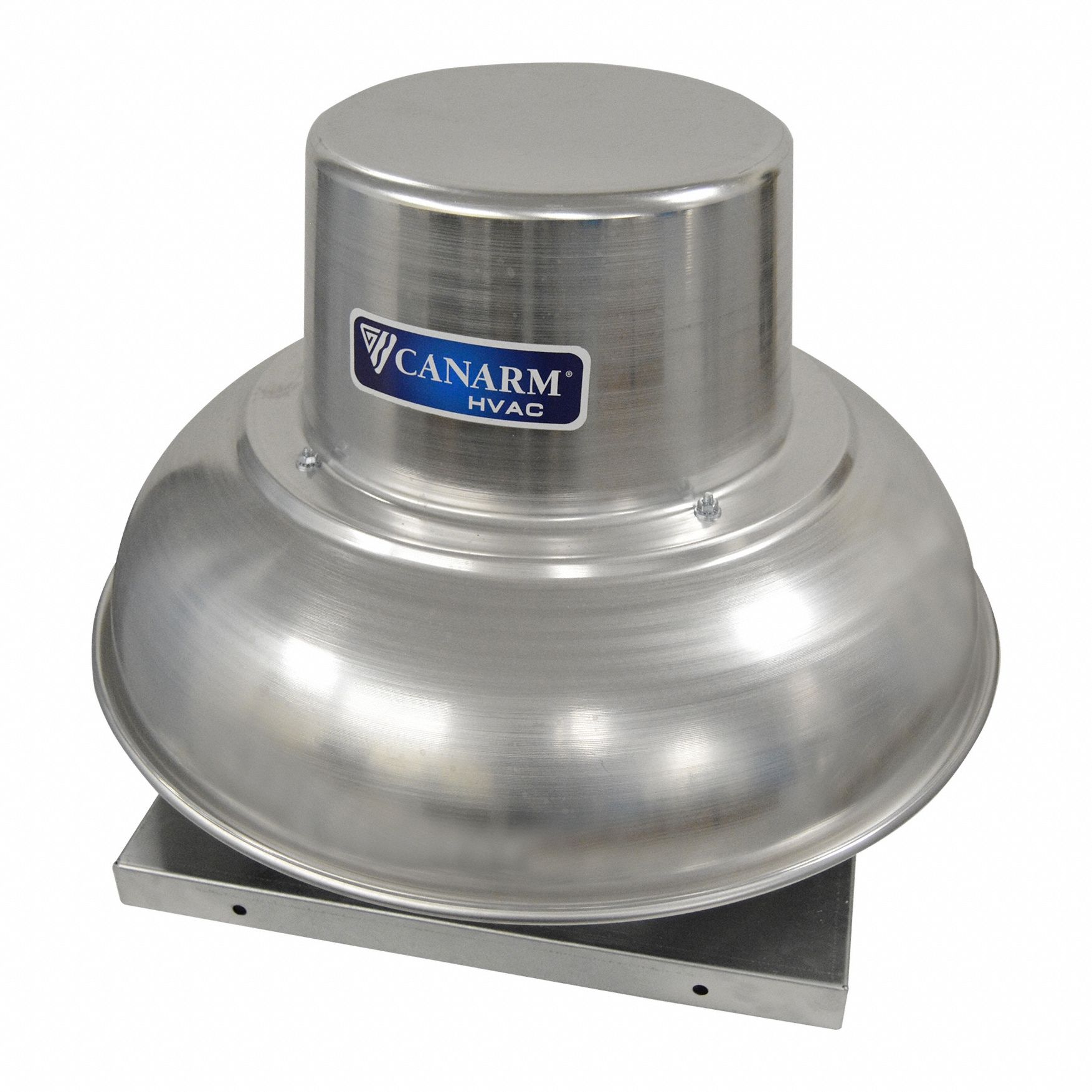

The CANARM Downblast Exhauster: Direct Drive (SKU 801N04, MPN ALX120-DD050EC) is a Clean Air direct-drive fan designed for roof and wall mounting. It features an electronically commutated, high-efficiency motor with variable speed, an open dripproof enclosure, and a square base. The unit is assembled with a drive package, delivers exhaust airflow up to 1,999 cfm at 0.000 in SP and 0.500 in SP, and is suitable for high-static-pressure applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 1,610 cfm, 1/2 hp, 1, Clean Air |
| Brand | CANARM |
| Wheel | 12 in |
| Assembly | Assembled |
| Base Shape | Square |
| Motor Type | Electronically Commutated |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | High-Efficiency Motors |
| Number Of Speeds | Variable |
| Mounting Location | Roof and Wall |
| Nameplate Voltage | 115/208-230V AC |
| High-Efficiency Motor | Yes |
| Manufacturer Part Number | ALX120-DD050EC |
| Exhaust Airflow @ 0.000 In SP - Range | 0 to 1,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 0 to 1,999 cfm |
| For High-Static Pressure Applications | Yes |
