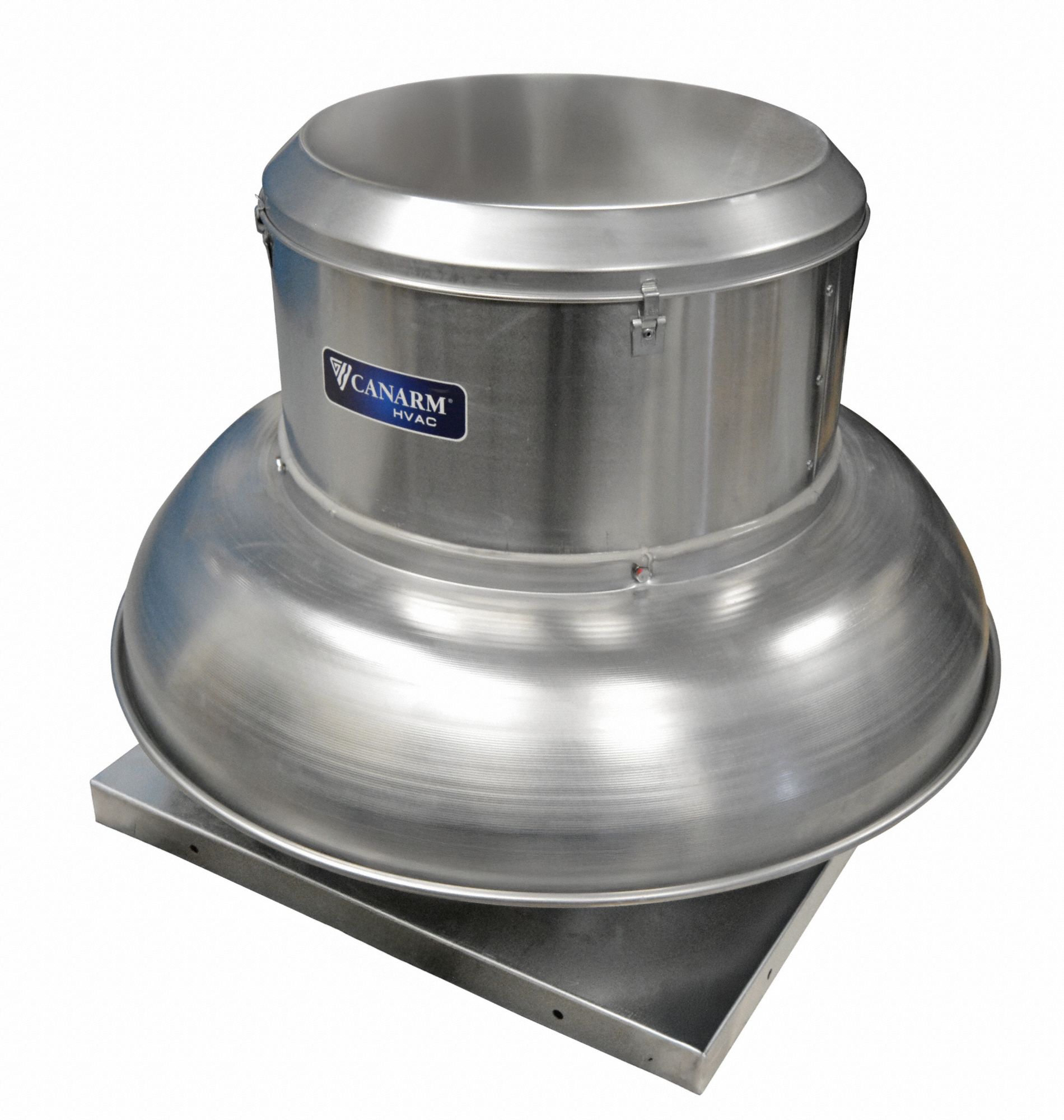

Canarm 3G-OTH-79543 — Technical Specifications
The CANARM Downblast Exhauster: Direct Drive (MPN ALX210-DD100EC) is a clean air direct-drive fan for roof and wall mounting. It features an electronically commutated motor with variable speeds, a 21-inch wheel, and delivers 4,400 cfm. This assembled unit includes a drive package and is designed for high-static pressure applications, with a square base and open dripproof motor enclosure.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 4,400 cfm, 1 hp, 1, Clean Air |
| Brand | CANARM |
| Wheel | 21 in |
| Assembly | Assembled |
| Base Shape | Square |
| Motor Type | Electronically Commutated |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | Variable |
| Mounting Location | Roof and Wall |
| Nameplate Voltage | 115/208-230V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | ALX210-DD100EC |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | Yes |
