Chainflex 3G-OTH-49783 — Technical Specifications

Name: Chainflex 3G-OTH-49783 CHAINFLEX Control Cable: 14 AWG, 4 Conductors, 25 ft, PUR Jacket, 1,000 V (MPN CF77-UL-25-04-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: cRUus.
Brand: Chainflex

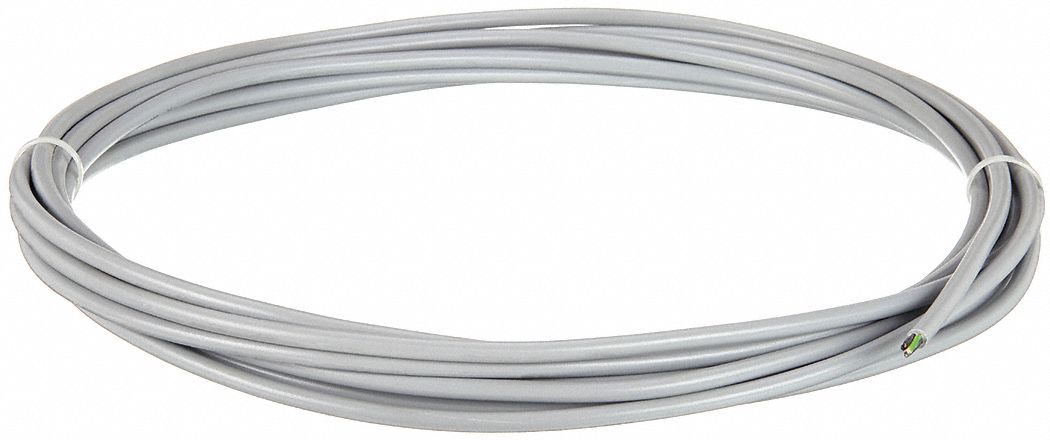

The CHAINFLEX Control Cable (SKU 24C008, MPN CF77-UL-25-04-25) is a continuous flexing control cable from the Chainflex series, featuring 14 AWG, 4 conductors, a 25 ft length, PUR jacket, and a 1,000 V rating. It includes a ground conductor, uses copper conductors with a single configuration, and is coolant resistant. The cable meets cRUus standards and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-25-04-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
