Chainflex 3G-OTH-46717 — Technical Specifications

Name: Chainflex 3G-OTH-46717 CHAINFLEX Motor Cable: 1 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF300-500-01-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Notch Resistance; Standards: cRUus.
Brand: Chainflex

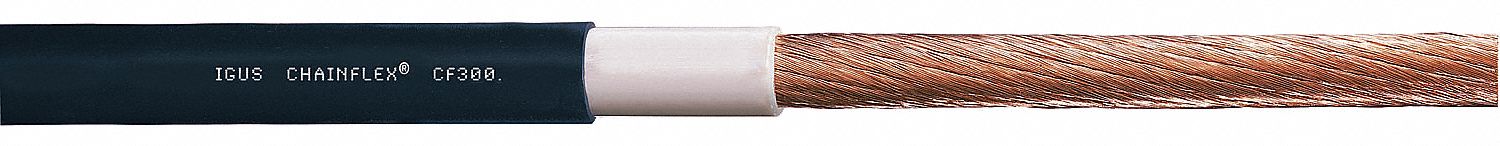

The CHAINFLEX Motor Cable: 1 AWG (SKU 24C147) is a continuous flexing power cable from the Chainflex CF300-UL series, featuring a single copper conductor with ground and a TPR jacket rated at 1,000 V. It meets cRUus standards and offers notch resistance, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	1
Cable Series	CF300-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF300-500-01-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
