Chainflex 3G-OTH-45343 — Technical Specifications

Name: Chainflex 3G-OTH-45343 CHAINFLEX Motor Cable: 12 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF310-40-01-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: cRUus.
Brand: Chainflex

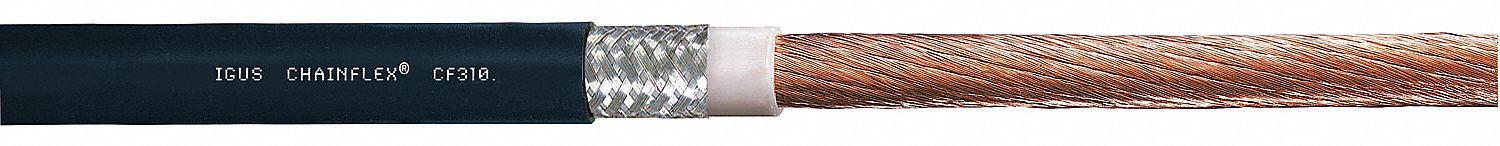

The CHAINFLEX CF310-UL Motor Cable (12 AWG, SKU 24C153) is a continuous flexing power cable for VFDs, featuring a single copper conductor with ground and a TPR jacket rated at 1,000 V. It meets cRUus standards, is flame retardant, and offers minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	1
Cable Series	CF310-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF310-40-01-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
