Chainflex 3G-OTH-45563 — Technical Specifications

Name: Chainflex 3G-OTH-45563 CHAINFLEX Motor Cable: 8 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF310-100-01-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

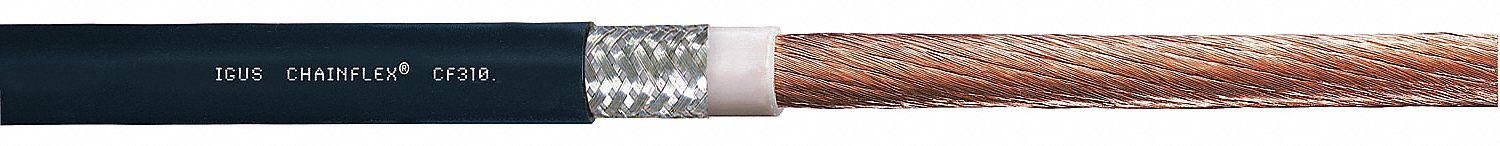

The CHAINFLEX CF310-UL Motor Cable (8 AWG, 1 conductor, SKU 24C155) is a continuous flexing power cable for VFDs from the Chainflex series. It features a copper conductor, TPR jacket, includes a ground, and is rated at 1,000 V. The cable is oil and grease resistant, cRUus certified, with minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	1
Cable Series	CF310-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF310-100-01-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
