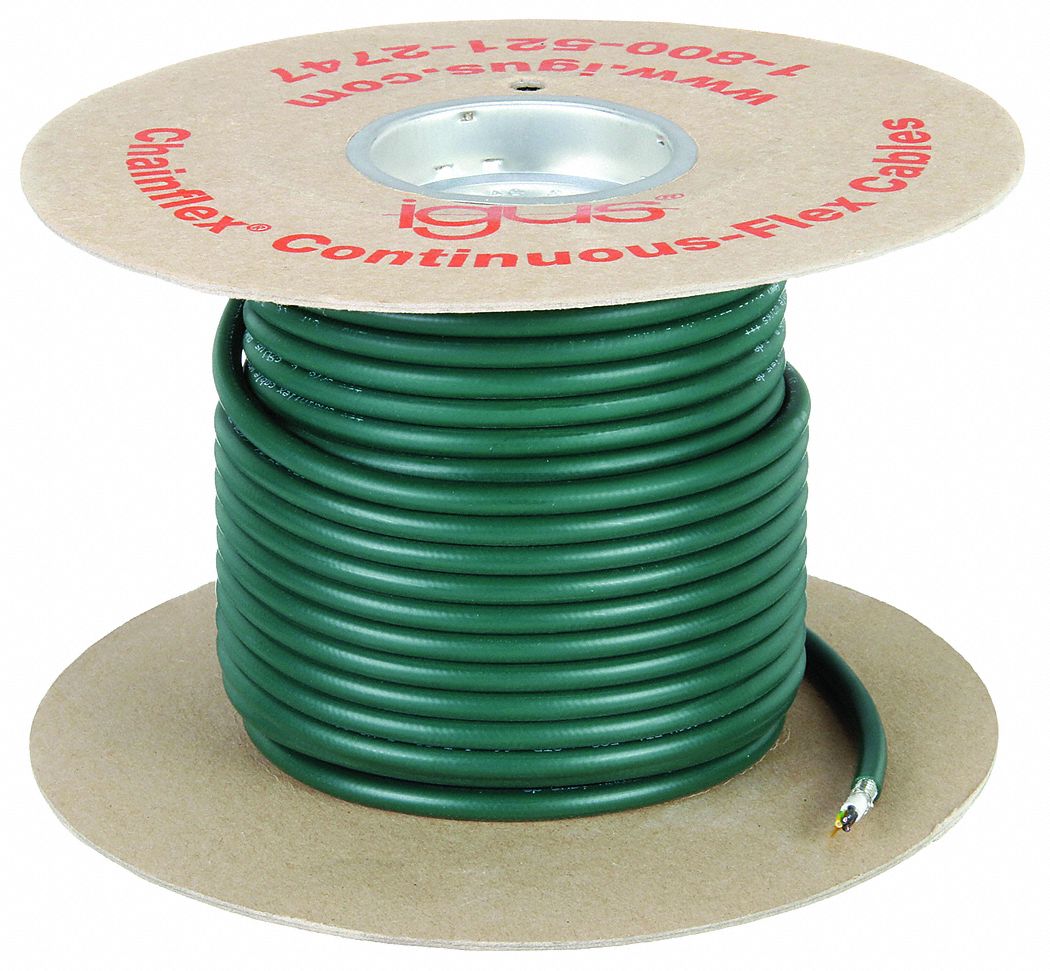

Chainflex 3G-OTH-48587 — Technical Specifications

Name: Chainflex 3G-OTH-48587 CHAINFLEX Control Cable: 16 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF6-15-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Heat Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable: 16 AWG (SKU 2TZA8) is a continuous flexing control cable from the Chainflex CF6 series, featuring 4 copper conductors with a PVC jacket rated at 600 V. It includes a ground conductor, is heat resistant, and meets CE standards. The cable offers minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Conductors	4
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-15-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
