Chainflex 3G-OTH-47600 — Technical Specifications

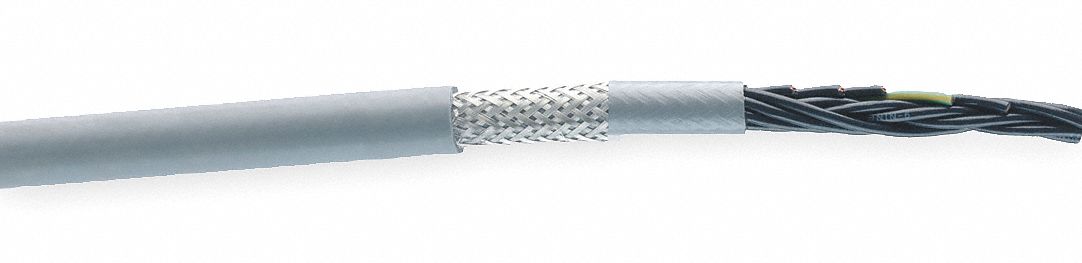

The CHAINFLEX Control Cable (SKU 2TZE8) is a shielded continuous flexing exposed run tray cable with 18 AWG conductor size and 12 conductors. It features a PVC jacket, gray color, and is sold by the foot. The cable has a minimum bend radius factor of 7.5 x OD for fixed installations and 8 x OD for flexible applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PVC, Order by the Foot, Gray |
| Brand | CHAINFLEX |
| Shielding | Shielded |
| Conductors | 12 |
| Conductor Size | 18 AWG |
| Manufacturer Part Number | CF140US-07-12 |
| Minimum Bend Radius Factor - Fixed | 7.5 x OD |
| Minimum Bend Radius Factor - Flexible | 8 x OD |
