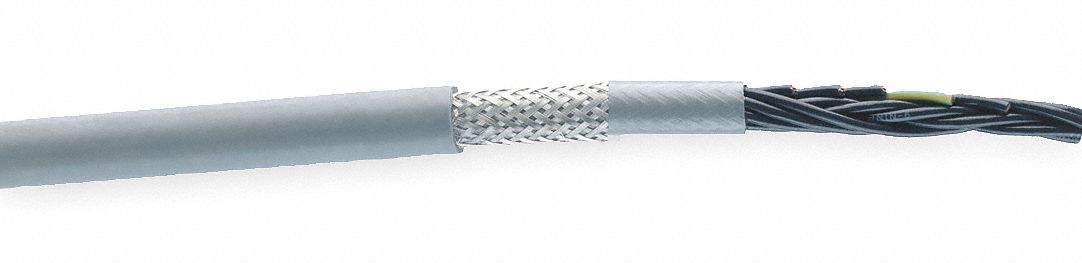

Chainflex 3G-OTH-45522 — Technical Specifications
The CHAINFLEX Control Cable: 10 AWG Conductor Size is a shielded continuous flexing exposed run tray cable with 4 conductors and PVC insulation, available in gray. It features a minimum bend radius factor of 7.5 x OD for fixed installations and 8 x OD for flexible applications, with a conductor size of 10 AWG.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PVC, Order by the Foot, Gray |
| Brand | CHAINFLEX |
| Shielding | Shielded |
| Conductors | 4 |
| Conductor Size | 10 AWG |
| Manufacturer Part Number | CF140US-60-04 |
| Minimum Bend Radius Factor - Fixed | 7.5 x OD |
| Minimum Bend Radius Factor - Flexible | 8 x OD |
