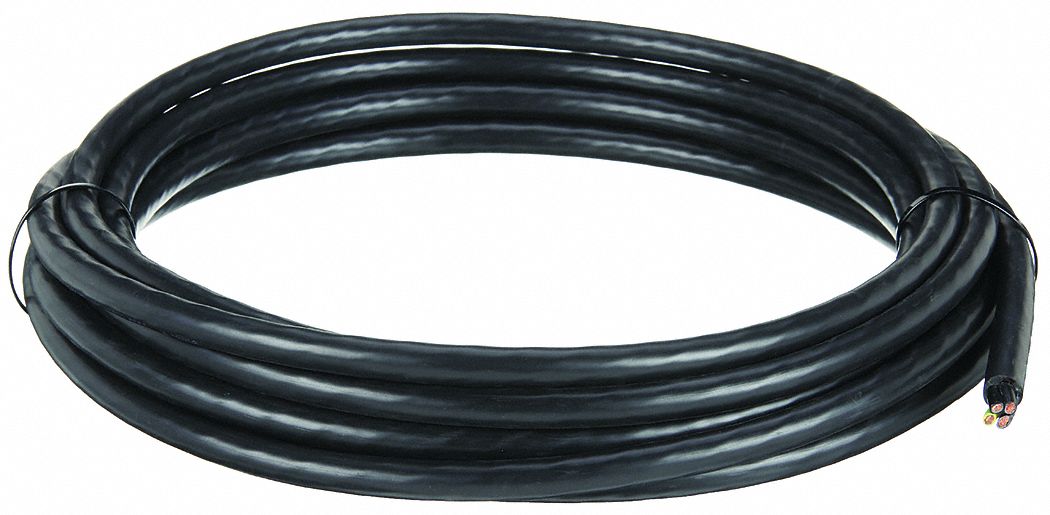

Chainflex 3G-OTH-45468 — Technical Specifications

Name: Chainflex 3G-OTH-45468 CHAINFLEX Motor Cable: 10 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF30-60-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Heat Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Motor Cable: 10 AWG (SKU 2TZG3, MPN CF30-60-04) is a continuous flexing power cable for VFDs from the Chainflex CF30 series. It features 4 copper conductors with a single conductor configuration, a PVC jacket, and a 1,000 V rating. The cable includes a ground conductor, is heat resistant, and meets cRUus standards. Minimum bend radius factors are 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	4
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF30-60-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
