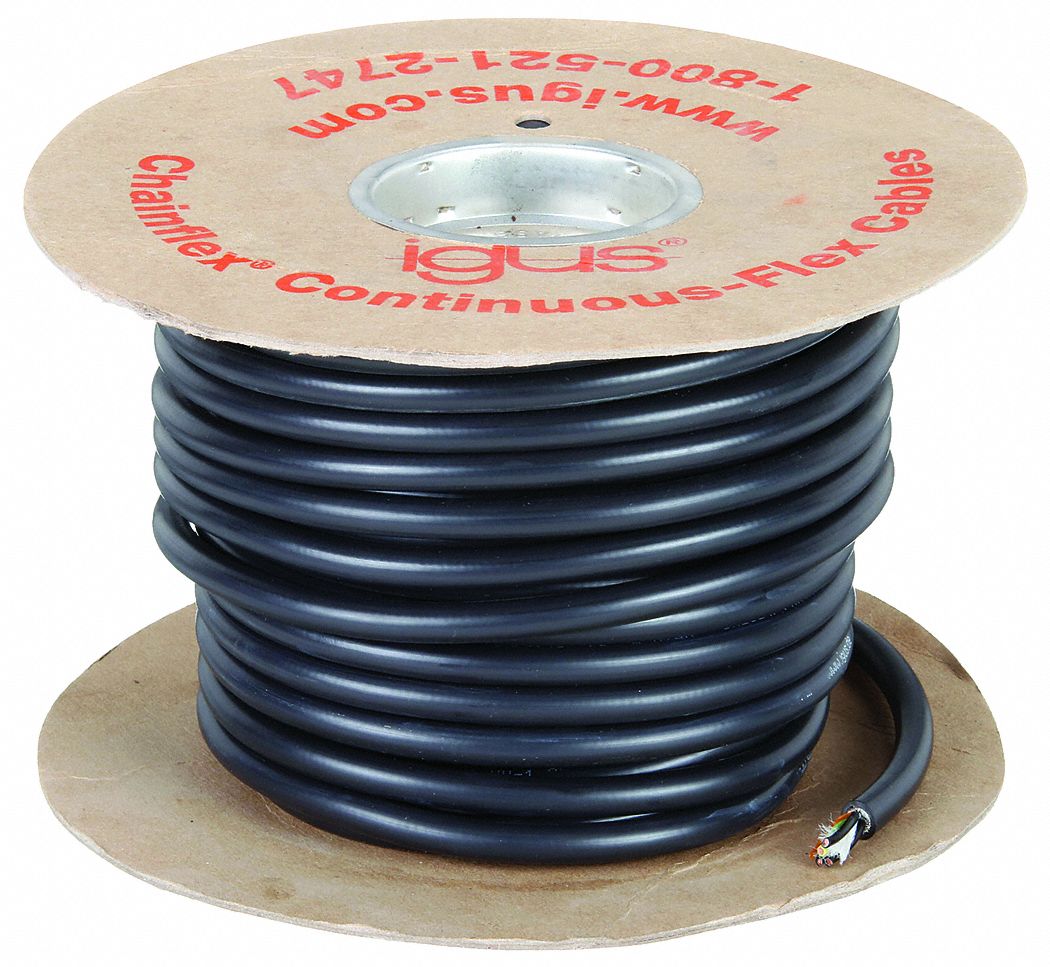

Chainflex 3G-OTH-45266 — Technical Specifications

Name: Chainflex 3G-OTH-45266 CHAINFLEX Motor Cable: 14 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF31-25-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Heat Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Motor Cable: 14 AWG (SKU 2TZG6) is a continuous flexing power cable for VFDs from the Chainflex CF31 series. This 4-conductor, single-configuration copper cable includes a ground conductor, features a PVC jacket, and is rated at 1,000 V. It is CE certified and heat resistant, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Conductors	4
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF31-25-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
