Chainflex 3G-OTH-48364 — Technical Specifications

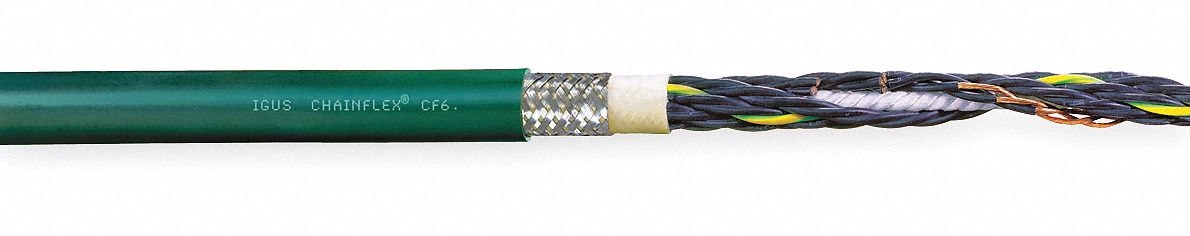

The CHAINFLEX CF6-07-24-25 is a continuous flexing control cable from the CF6 series, featuring 18 AWG, 24 conductors, a PVC jacket, and a 600 V rating. It is constructed with copper conductors, color-coded black with white numbers, and is oil and grease resistant. The cable meets CE standards and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | CHAINFLEX |
| Standards | CE |
| Cable Series | CF6 |
| Product Type | Control Cable |
| Conductor Material | Copper |
| Conductor Color Code | Black with White Numbers |
| Resistance Properties | Oil and Grease Resistant |
| Manufacturer Part Number | CF6-07-24-25 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 6.8 x OD |
| Minimum Bend Radius Factor - Flexible | 5 x OD |
