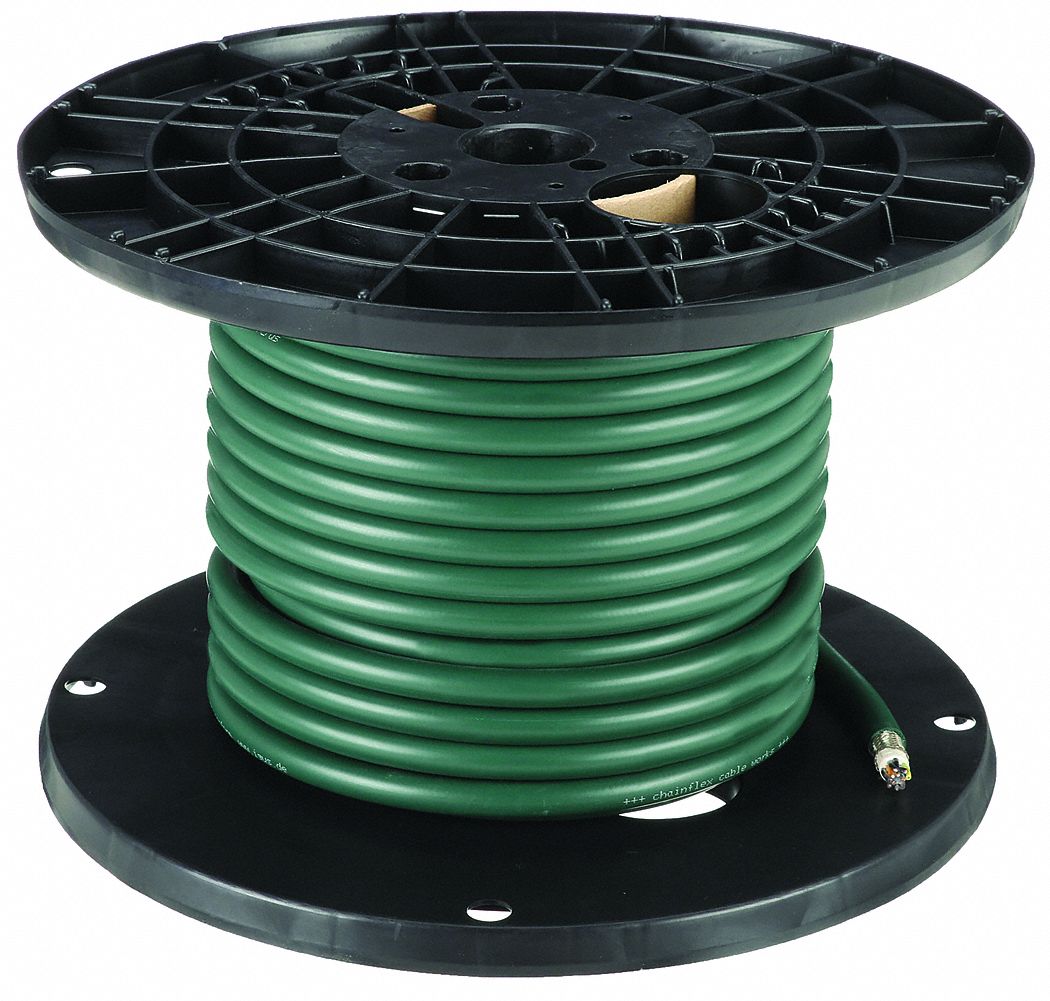

Chainflex 3G-OTH-49527 — Technical Specifications

Name: Chainflex 3G-OTH-49527 CHAINFLEX Control Cable: 16 AWG, 12 Conductors, 100 ft, PVC Jacket, 600 V (MPN CF6-15-12-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX CF6 Continuous Flexing Control Cable (SKU 2WGP1) is a 16 AWG, 12-conductor, 100 ft cable with a PVC jacket rated at 600 V. It features copper conductors with a single configuration, includes a ground, and is oil and grease resistant. The cable meets CE standards and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-15-12-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
