Chainflex 3G-OTH-45513 — Technical Specifications

Name: Chainflex 3G-OTH-45513 CHAINFLEX Control Cable: 26 AWG, 12 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-01-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Bending Resistance; Standards: CF9.15.07 ISO Class 1 (Outer Jacket Material).
Brand: Chainflex

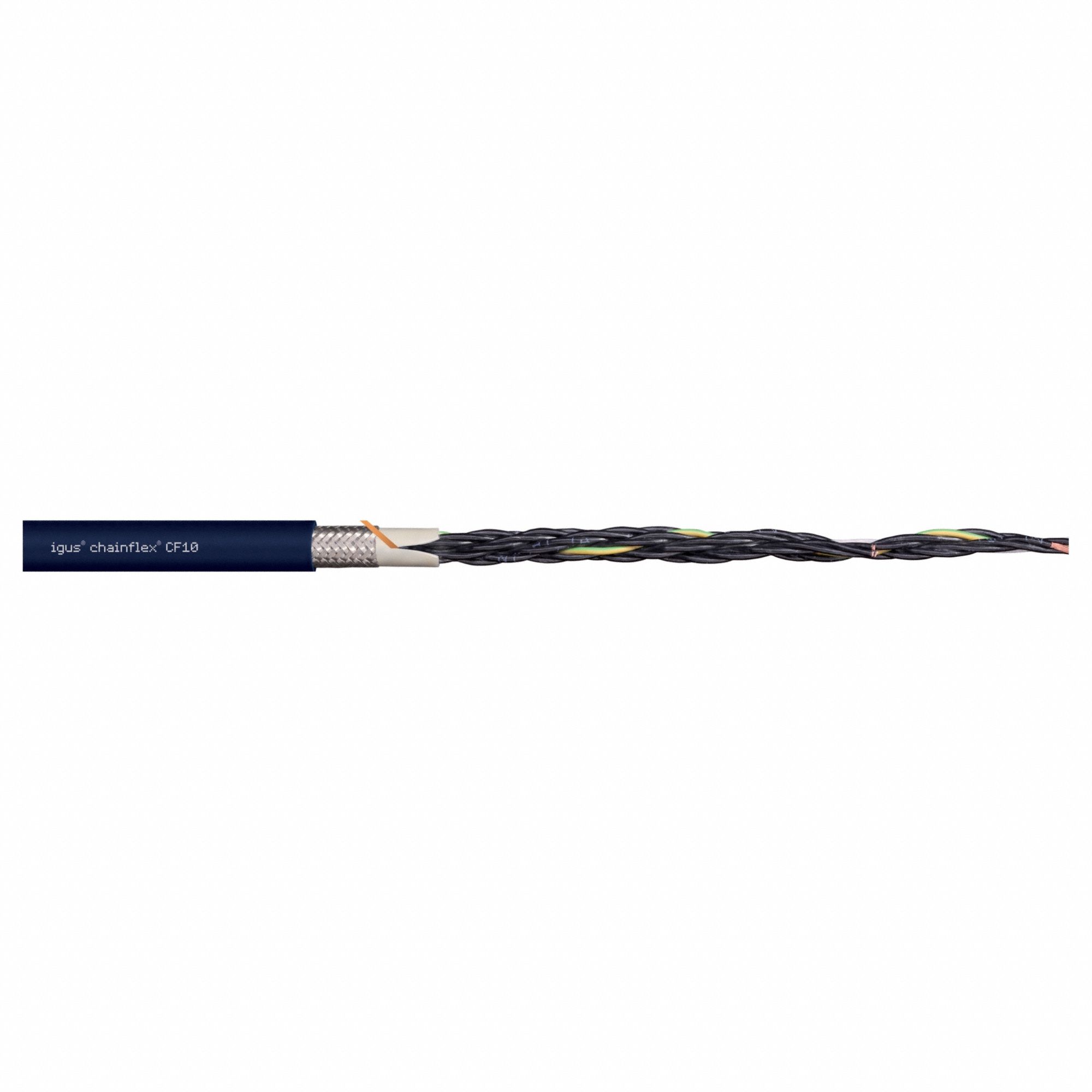

The CHAINFLEX Control Cable: 26 AWG is a continuous flexing control cable from the CF10 series, featuring 12 copper conductors with a single conductor configuration and a TPR jacket rated at 300 V. It offers bending resistance and meets CF9.15.07 ISO Class 1 standards for the outer jacket material, with minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CF9.15.07 ISO Class 1 (Outer Jacket Material)
Conductors	12
Cable Series	CF10
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Bending Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF10-01-12
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
