Chainflex 3G-OTH-51669 — Technical Specifications

Name: Chainflex 3G-OTH-51669 CHAINFLEX Control Cable: 17 AWG, 18 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-10-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Coolant Resistant; Standards: VW-1.
Brand: Chainflex

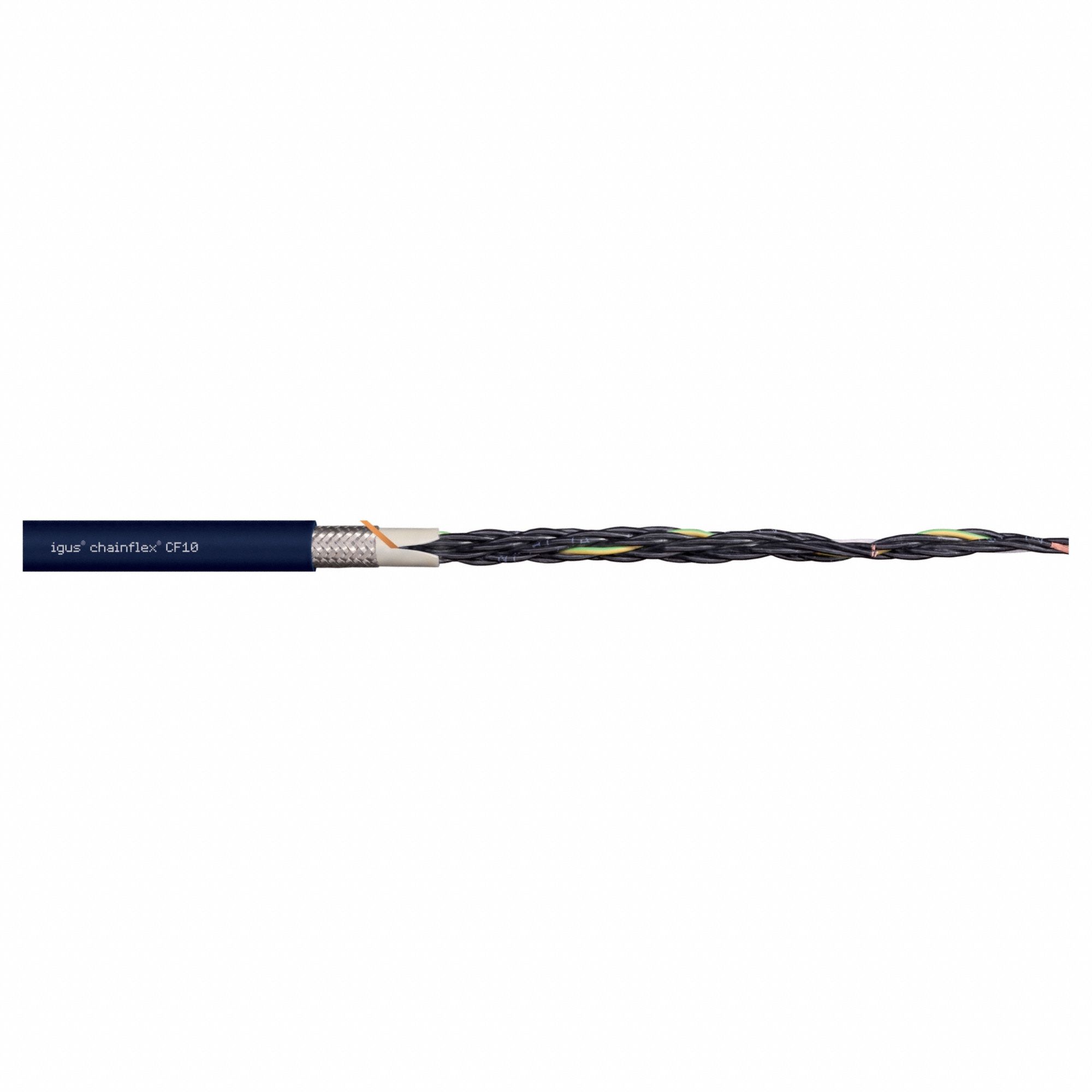

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex CF10 series, featuring 18 conductors with single copper conductors and a TPR jacket rated at 300 V. It includes a ground conductor, is coolant resistant, and meets VW-1 standards. Minimum bend radius factors are 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	18
Cable Series	CF10
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF10-10-18
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
