Chainflex 3G-OTH-51563 — Technical Specifications

Name: Chainflex 3G-OTH-51563 CHAINFLEX Control Cable: 17 AWG, 25 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-10-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Bending Resistance; Standards: FT-1.
Brand: Chainflex

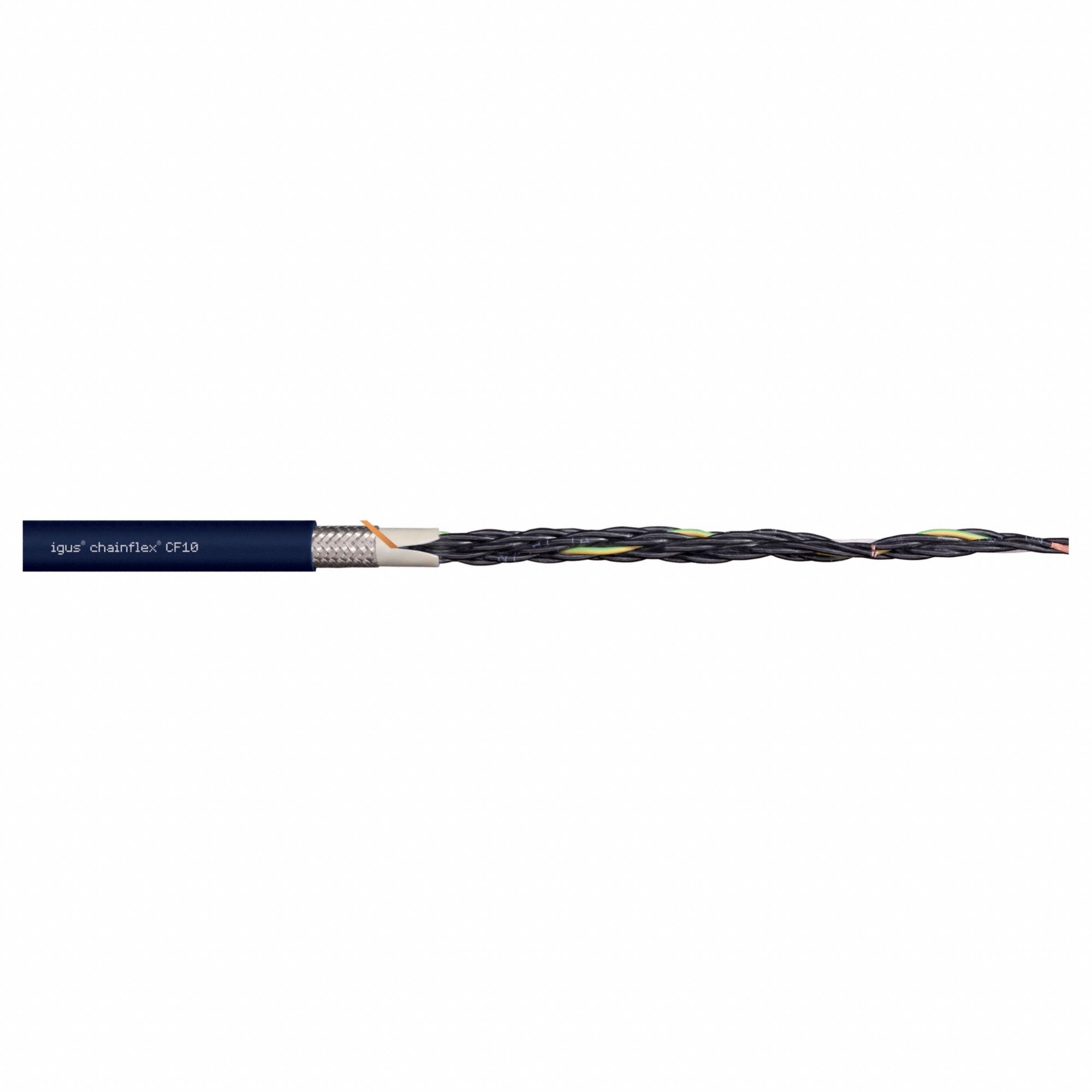

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex CF10 series, featuring 25 conductors of single copper wire with a TPR jacket rated at 300 V. It includes a ground conductor and offers bending resistance, with minimum bend radius factors of 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications. This cable meets FT-1 standards and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	25
Cable Series	CF10
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Bending Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF10-10-25
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
