Chainflex 3G-OTH-51520 — Technical Specifications

Name: Chainflex 3G-OTH-51520 CHAINFLEX Control Cable: 14 AWG, 7 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-25-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: FT-1.
Brand: Chainflex

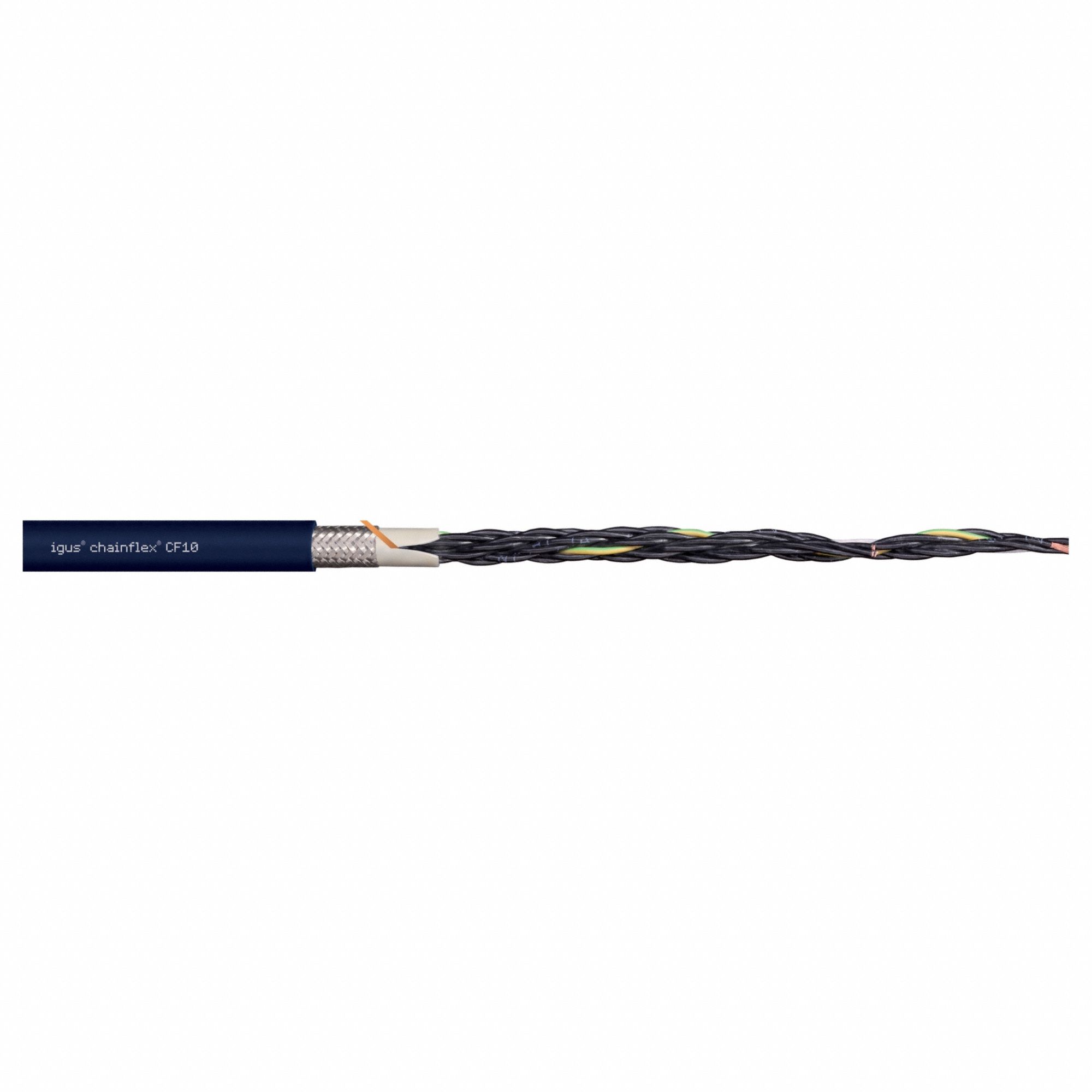

The CHAINFLEX Control Cable: 14 AWG is a continuous flexing control cable from the Chainflex CF10-UL series, featuring 7 conductors of single copper wire with a TPR jacket and a 300 V rating. It includes a ground conductor, is oil and grease resistant, and meets FT-1 standards. Minimum bend radius factors are 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	7
Cable Series	CF10-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF10-25-07
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
