Chainflex 3G-OTH-50468 — Technical Specifications

Name: Chainflex 3G-OTH-50468 CHAINFLEX Control Cable: 24 AWG, 4 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-UL-02-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Flame Retardant; Standards: IPA 14644-1.
Brand: Chainflex

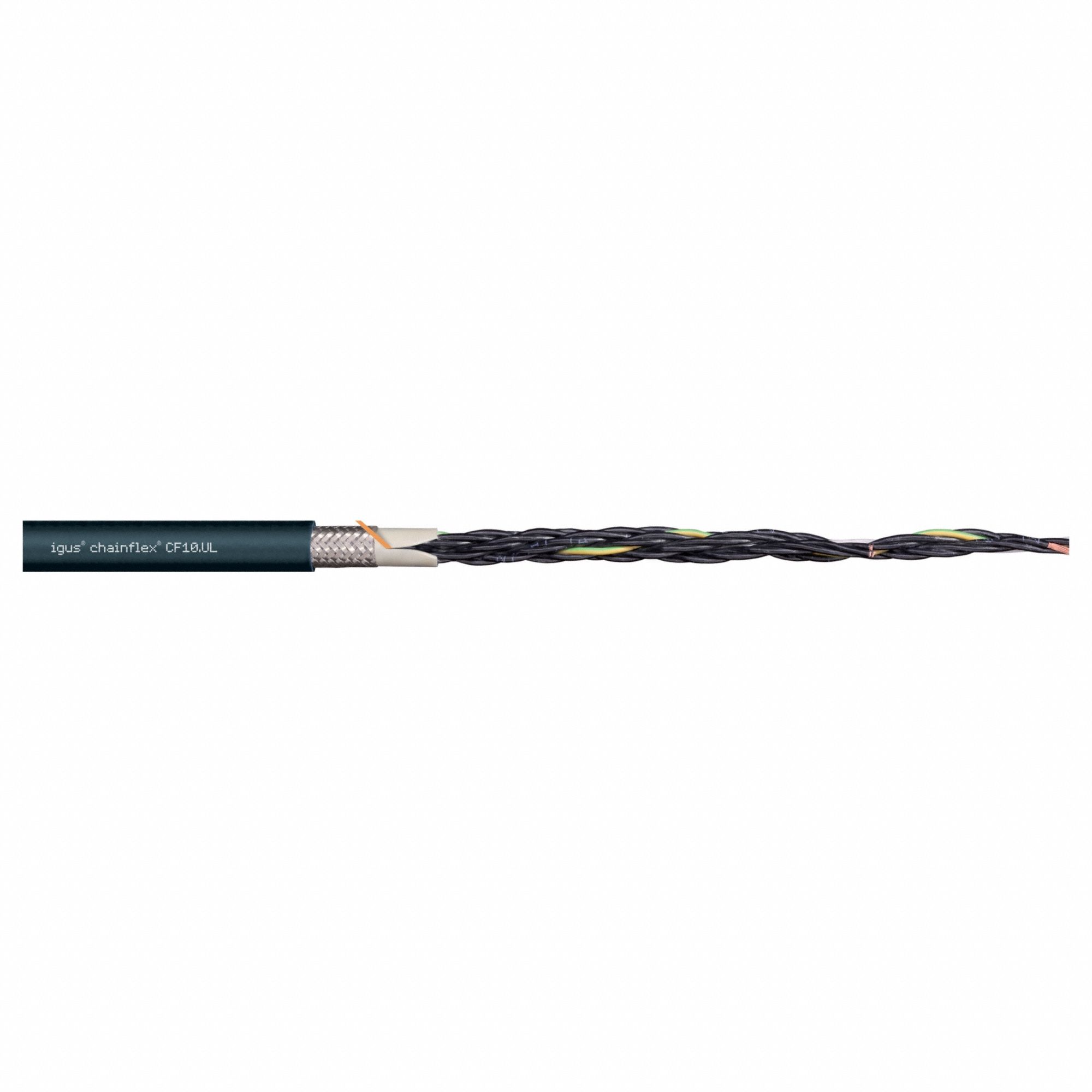

The CHAINFLEX Control Cable: 24 AWG is a continuous flexing control cable from the Chainflex CF10-UL series. It features 4 copper conductors, a TPR jacket, and a 300 V rating, with minimum bend radius factors of 3 x OD (fixed), 4 x OD (flexible), and 5 x OD (e-chain). This flame-retardant cable meets IPA 14644-1 standards and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IPA 14644-1
Conductors	4
Cable Series	CF10-UL
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF10-UL-02-04
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
