Chainflex 3G-OTH-50530 — Technical Specifications

Name: Chainflex 3G-OTH-50530 CHAINFLEX Control Cable: 12 AWG, 4 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF10-UL-40-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CF9.15.07 ISO Class 1 (Outer Jacket Material).
Brand: Chainflex

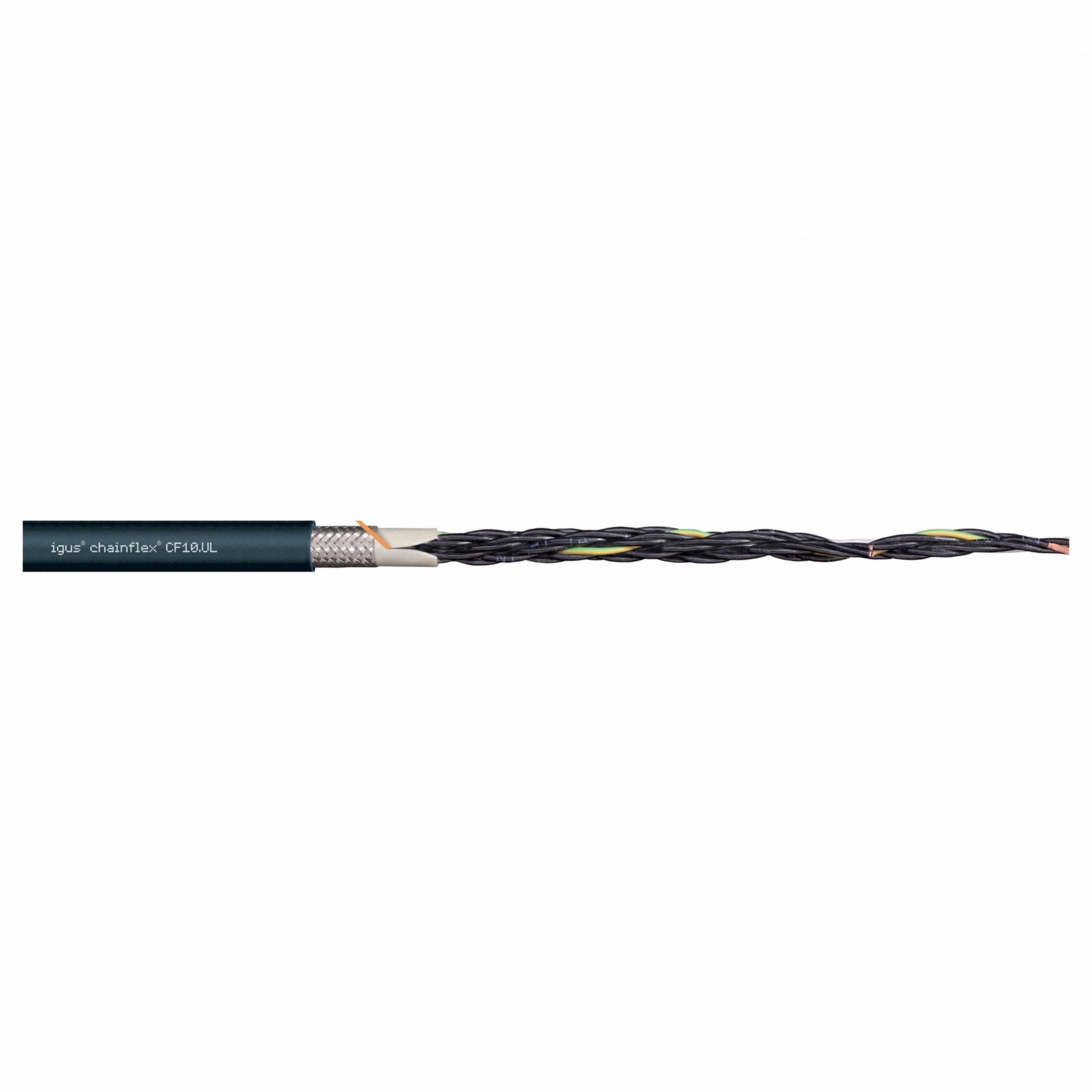

The CHAINFLEX Control Cable: 12 AWG is a continuous flexing control cable from the Chainflex CF10-UL series, featuring 4 copper conductors with a single conductor configuration and an integrated ground. It is oil and grease resistant, with a TPR jacket meeting CF9.15.07 ISO Class 1 standards, and rated for 1,000 V. The cable supports fixed, flexible, and e-chain installations with minimum bend radius factors of 3 x OD, 4 x OD, and 5 x OD, respectively.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CF9.15.07 ISO Class 1 (Outer Jacket Material)
Conductors	4
Cable Series	CF10-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF10-UL-40-04
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
