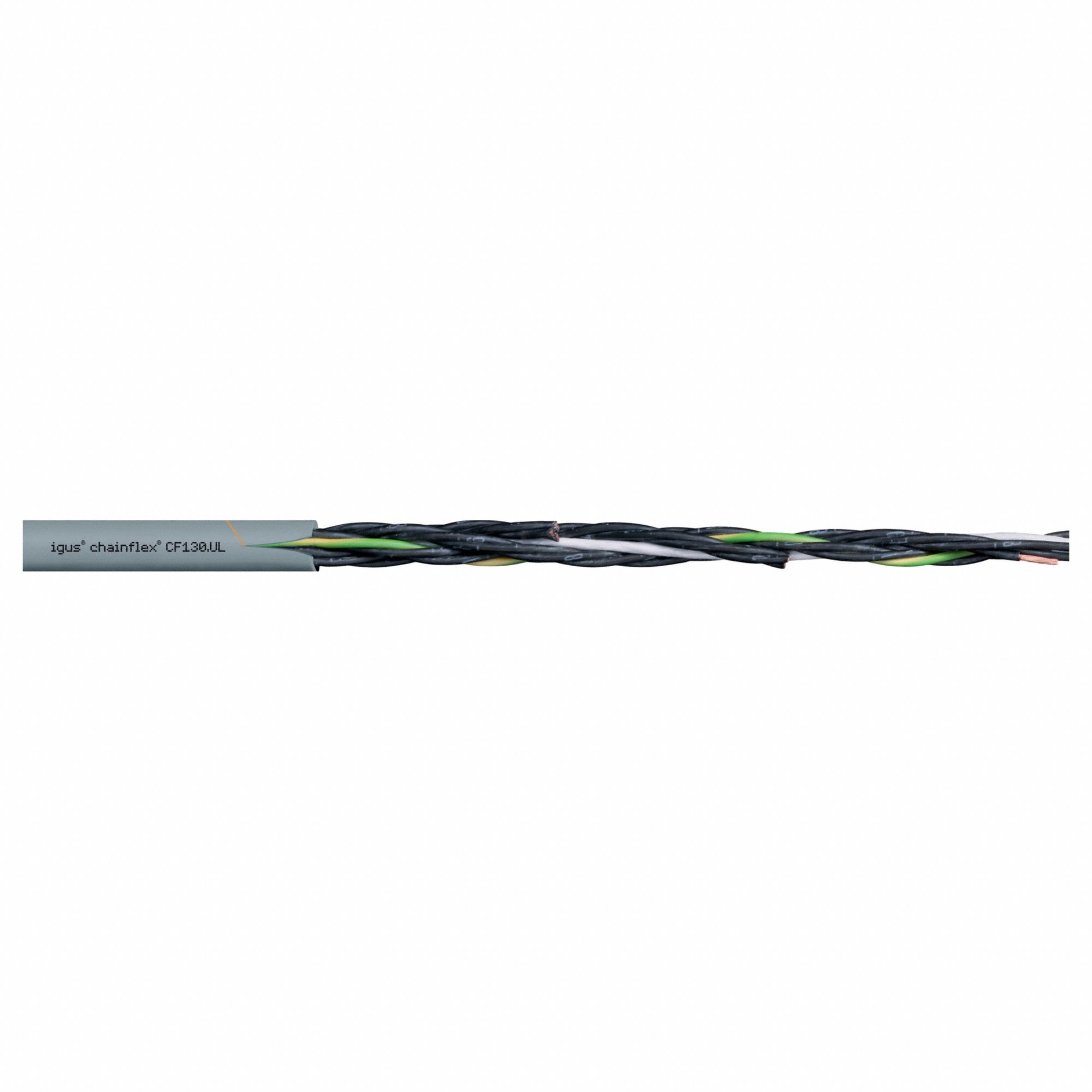

Chainflex 3G-OTH-52805 — Technical Specifications

Name: Chainflex 3G-OTH-52805 CHAINFLEX Control Cable: 24 AWG, 20 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-02-20). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: CEI 20-35.
Brand: Chainflex

The CHAINFLEX Control Cable: 24 AWG is a continuous flexing control cable from the Chainflex CF130-UL series, featuring 20 conductors of single copper wire with a PVC jacket rated for 300 V. It includes a ground conductor and is flame retardant, meeting CEI 20-35 standards. The cable supports fixed, flexible, and e-chain installations with minimum bend radius factors of 4 x OD, 6 x OD, and 7.5 x OD respectively.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Conductors	20
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF130-02-20
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
