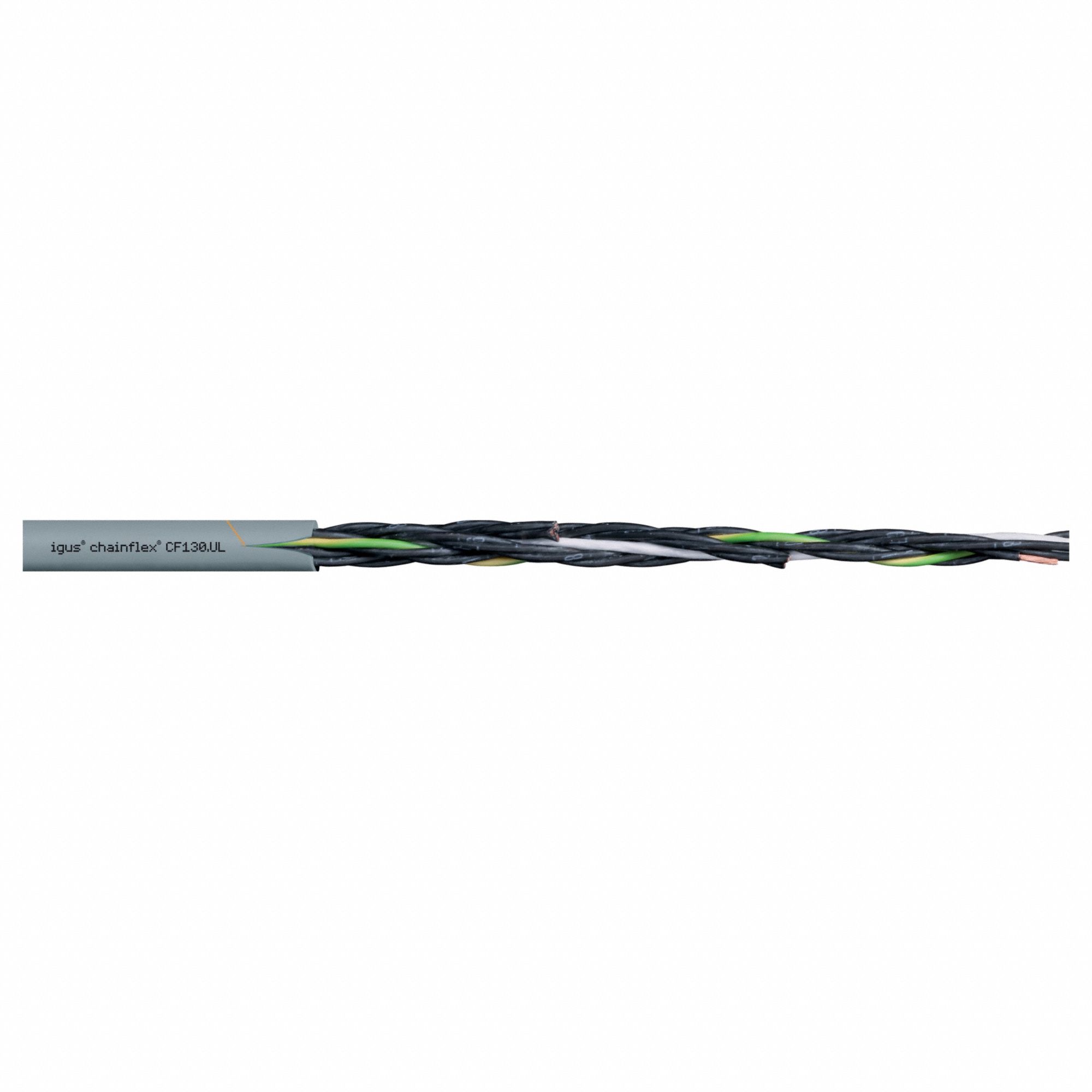

Chainflex 3G-OTH-46033 — Technical Specifications
The CHAINFLEX Control Cable: 20 AWG (SKU 801J43) is a continuous flexing control cable from the Chainflex CF130-UL series. This 5-conductor, single-conductor-configuration cable features a copper conductor, PVC jacket, 300 V rating, and includes a ground. It is flame retardant and meets EAC TC RU C-DE. ME77.B.01254 standards, with minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Order by the Foot, PVC Jacket, 300 V |
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | EAC TC RU C-DE. ME77.B.01254 |
| Conductors | 5 |
| Cable Series | CF130-UL |
| Product Type | Control Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Resistance Properties | Flame Retardant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF130-05-05 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 7.5 x OD |
| Minimum Bend Radius Factor - Flexible | 6 x OD |
