Chainflex 3G-OTH-52153 — Technical Specifications

Name: Chainflex 3G-OTH-52153 CHAINFLEX Control Cable: 20 AWG, 25 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-05-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: VW-1.
Brand: Chainflex

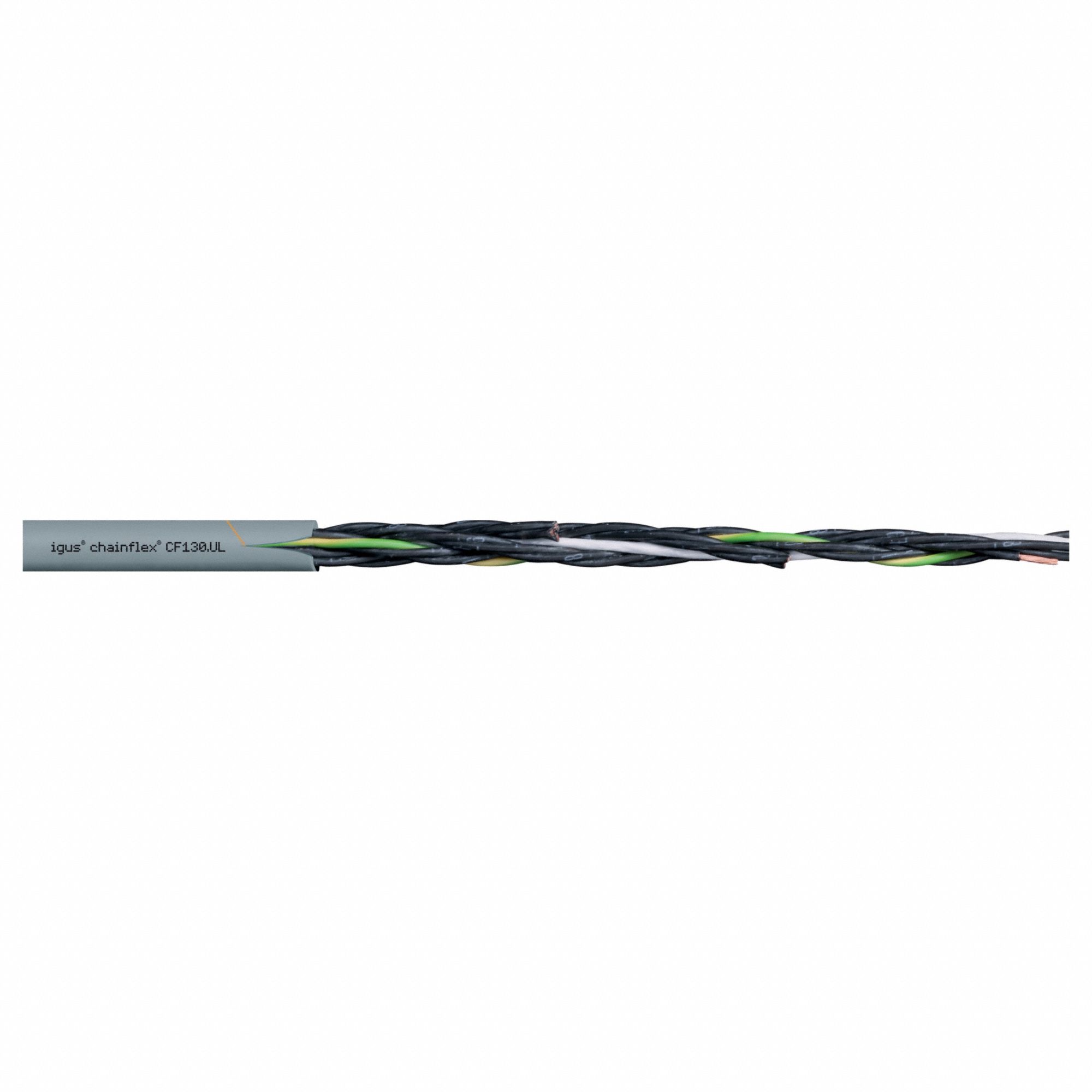

The CHAINFLEX Control Cable: 20 AWG (SKU 801J45, MPN CF130-05-25) is a continuous flexing control cable from the Chainflex CF130-UL series. It features 25 conductors of single copper wire, includes a ground, and is rated 300 V with a PVC jacket. The cable is flame retardant per VW-1 standards and specifies minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	25
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF130-05-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
