Chainflex 3G-OTH-52421 — Technical Specifications

Name: Chainflex 3G-OTH-52421 CHAINFLEX Control Cable: 17 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF140-10-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: VW-1.
Brand: Chainflex

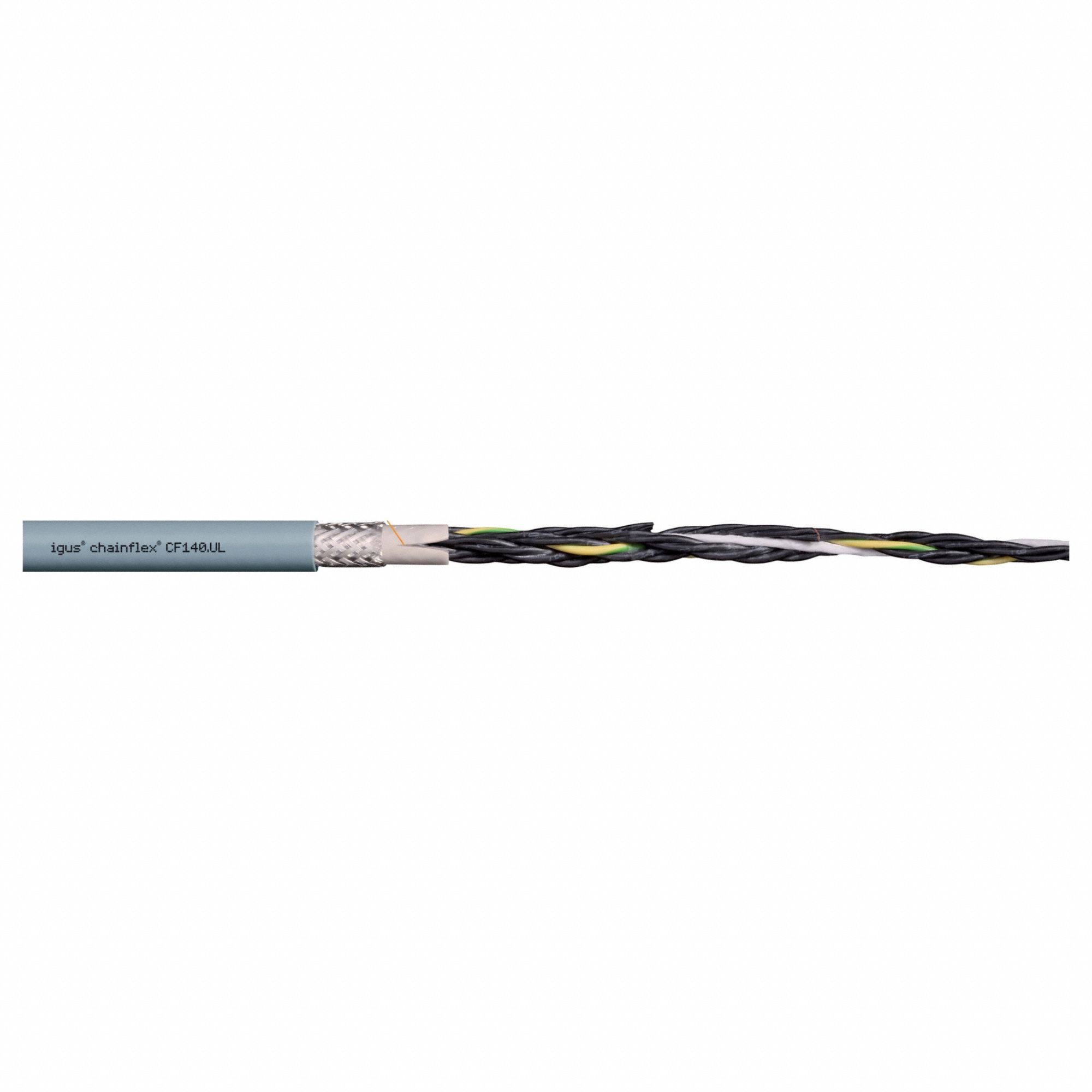

The CHAINFLEX Control Cable: 17 AWG (SKU 801JA2) is a continuous flexing control cable from the Chainflex CF140-UL series. This 5-conductor, single-conductor-configuration cable features a copper conductor, PVC jacket, 300 V rating, and includes a ground. It is oil and grease resistant, VW-1 rated, with minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	5
Cable Series	CF140-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF140-10-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
