Chainflex 3G-OTH-51414 — Technical Specifications

Name: Chainflex 3G-OTH-51414 CHAINFLEX Control Cable: 17 AWG, 12 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF140-10-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: NFPA 79-2012 Chapter 12.9.
Brand: Chainflex

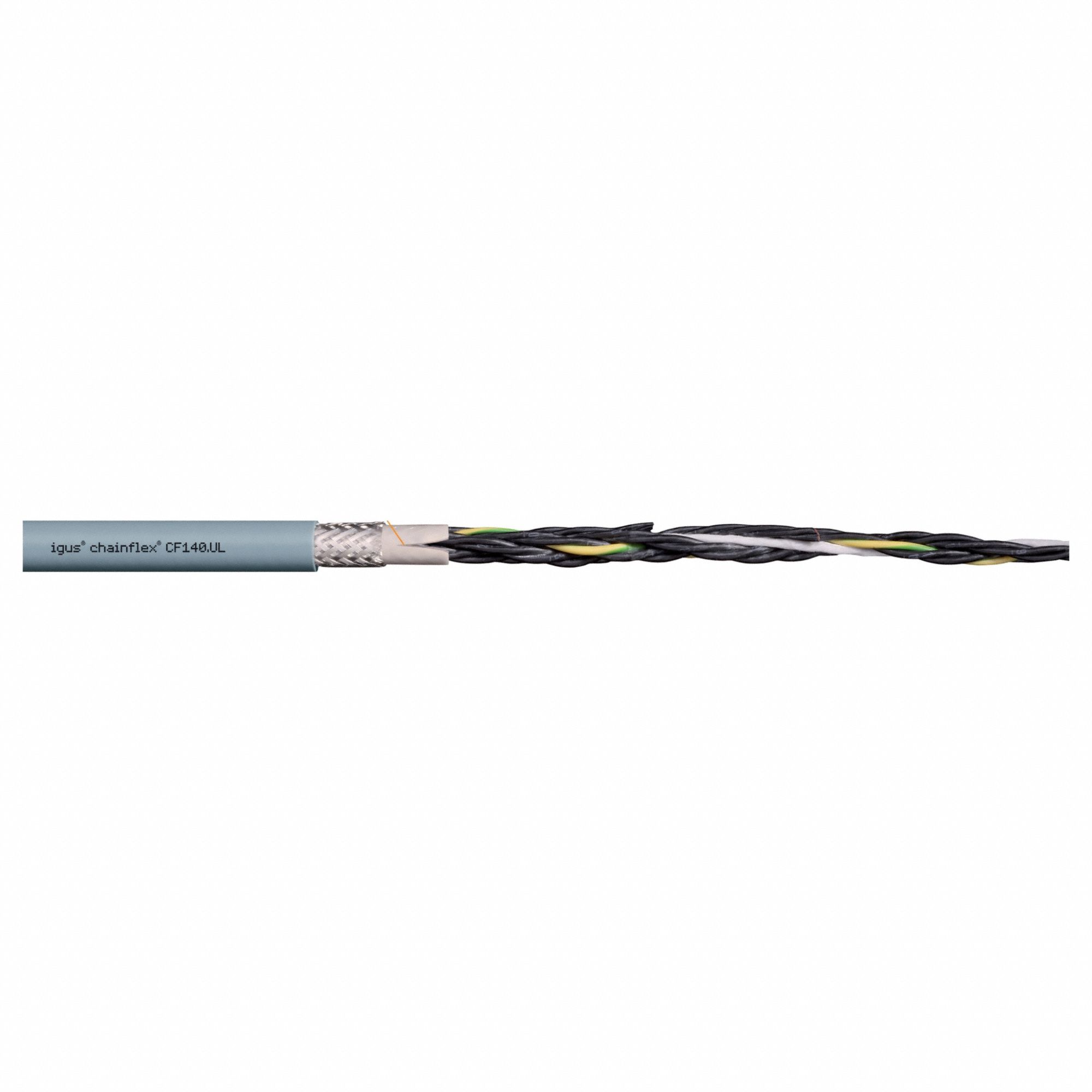

The CHAINFLEX Control Cable: 17 AWG (SKU 801JA5, MPN CF140-10-12) is a continuous flexing control cable from the Chainflex CF140-UL series. It features 12 conductors of single copper wire with a PVC jacket, rated 300 V, and includes a ground conductor. The cable is oil and grease resistant and complies with NFPA 79-2012 Chapter 12.9, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	NFPA 79-2012 Chapter 12.9
Conductors	12
Cable Series	CF140-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF140-10-12
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
