Chainflex 3G-OTH-54399 — Technical Specifications

Name: Chainflex 3G-OTH-54399 CHAINFLEX Control Cable: 16 AWG, 7 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF140-15-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 17.5 x OD; Minimum Bend Radius Factor - Flexible: 17.5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 17.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: WTTC UL 2277.
Brand: Chainflex

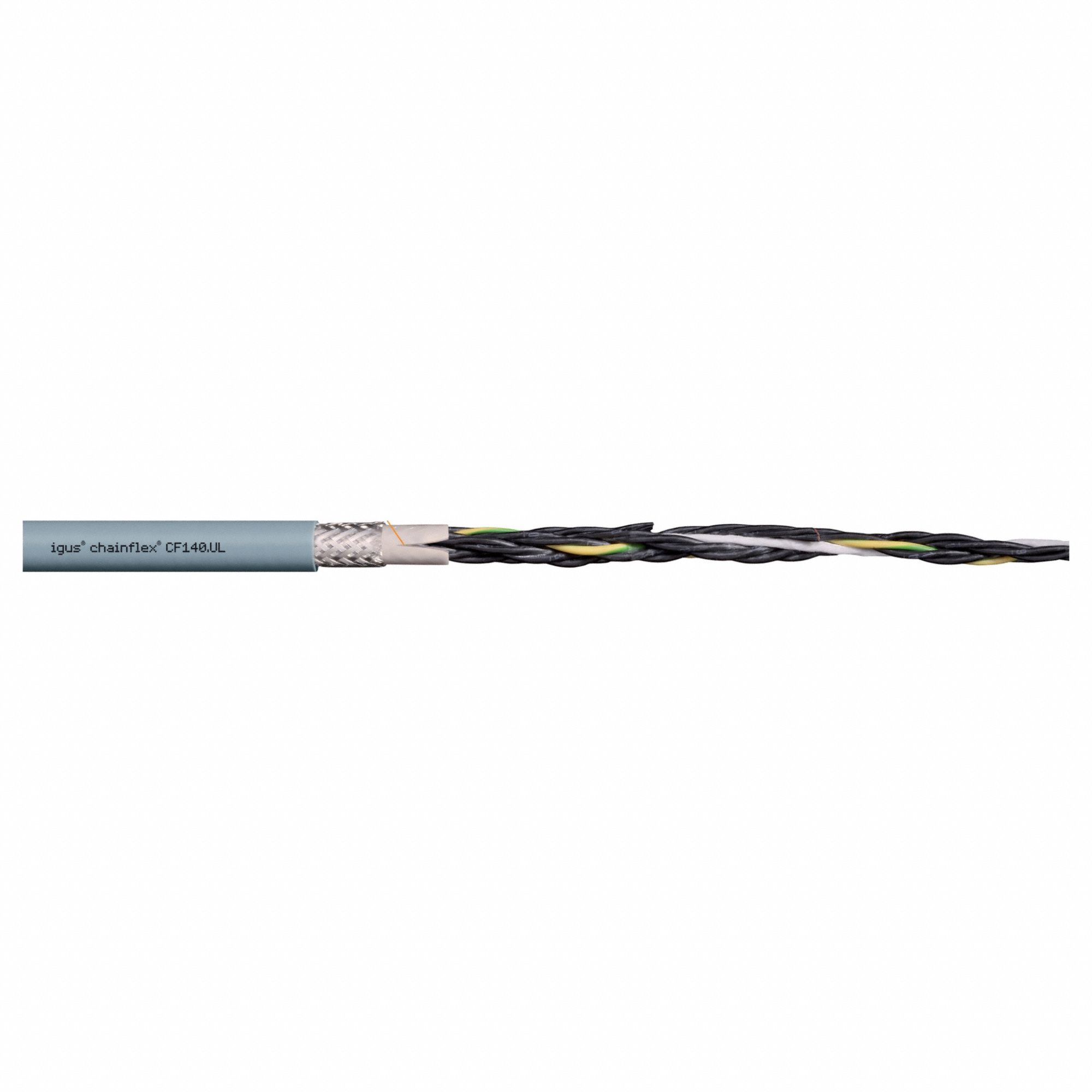

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the CF140-UL series, featuring 7 conductors of single copper wire with a PVC jacket rated at 300 V. It includes a ground conductor and is oil and grease resistant, with a minimum bend radius factor of 17.5 x OD for fixed, flexible, and e-chain applications. This cable meets WTTC UL 2277 standards and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	WTTC UL 2277
Conductors	7
Cable Series	CF140-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF140-15-07
Minimum Bend Radius Factor - Fixed	17.5 x OD
Minimum Bend Radius Factor - E-Chain	17.5 x OD
Minimum Bend Radius Factor - Flexible	17.5 x OD
