Chainflex 3G-OTH-45788 — Technical Specifications

Name: Chainflex 3G-OTH-45788 CHAINFLEX Control Cable: 14 AWG Conductor Size, 2 Conductors, PVC, Order by the Foot, Gray (MPN CF140US-25-02). Key specifications — Conductor Size: 14 AWG; Minimum Bend Radius Factor - Fixed: 7.5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Shielding: Shielded; Brand: CHAINFLEX.
Brand: Chainflex

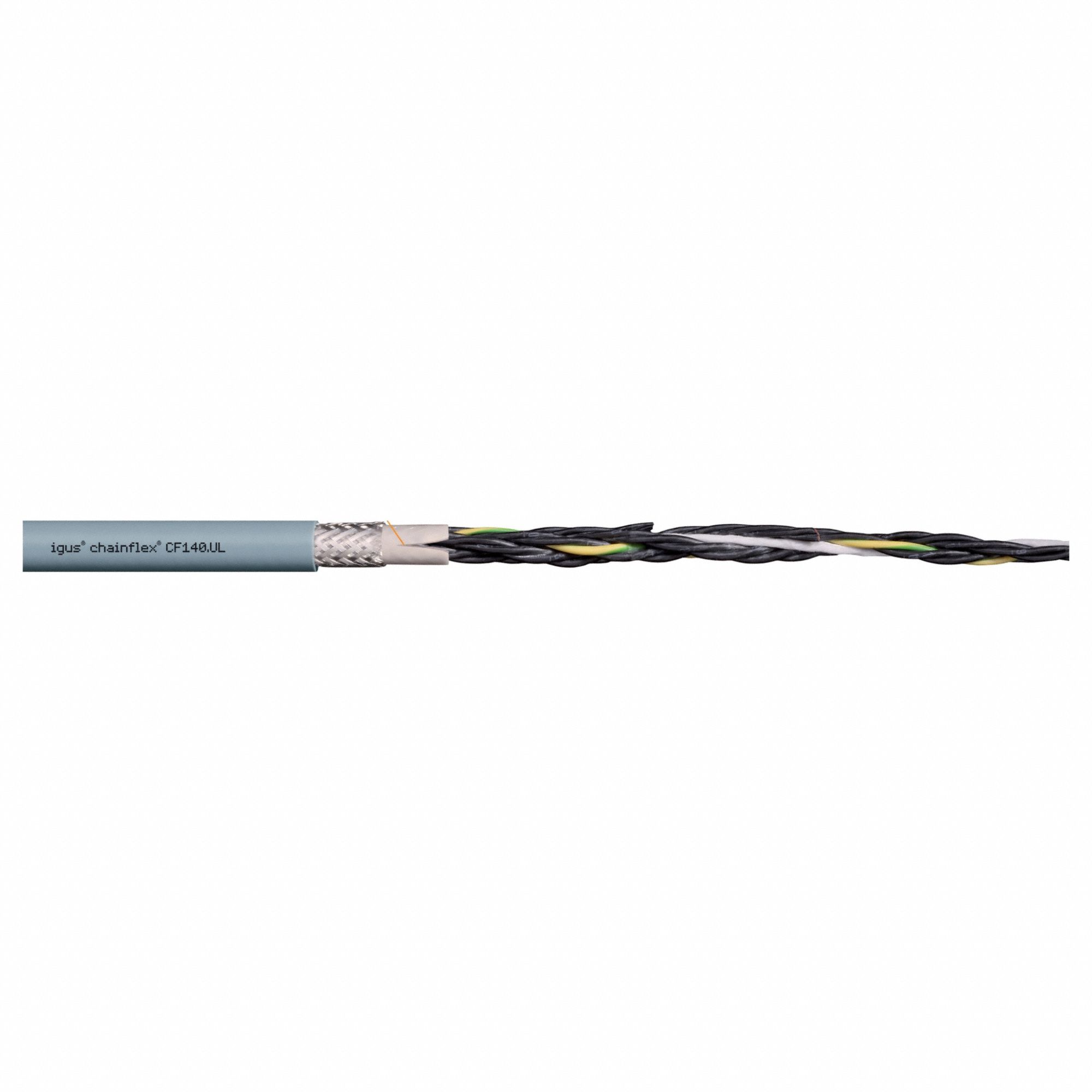

The CHAINFLEX Control Cable (14 AWG Conductor Size) is a shielded, continuous-flexing exposed-run tray cable with 2 conductors and a PVC jacket. It features a minimum bend radius factor of 7.5 x OD for fixed installations and 8 x OD for flexible applications. This cable is sold by the foot and is identified by manufacturer part number CF140US-25-02.

View Product & Quote

Technical Specifications

Parameter	Value
Type	PVC, Order by the Foot, Gray
Brand	CHAINFLEX
Shielding	Shielded
Conductors	2
Conductor Size	14 AWG
Manufacturer Part Number	CF140US-25-02
Minimum Bend Radius Factor - Fixed	7.5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
