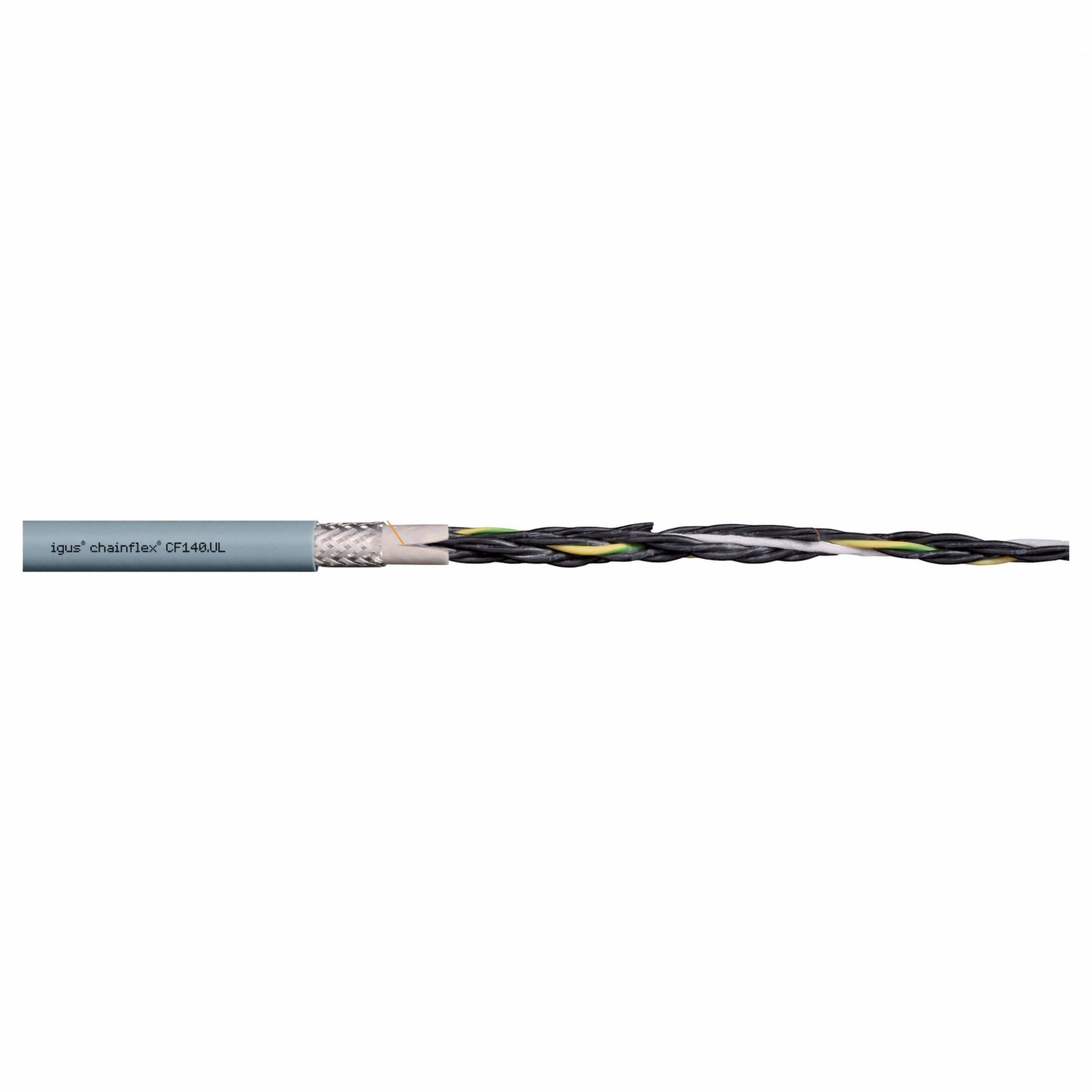

Chainflex 3G-OTH-46190 — Technical Specifications
The CHAINFLEX Control Cable (14 AWG Conductor Size) is a shielded continuous flexing exposed run tray cable with 12 conductors, PVC jacket, and gray color. It features a minimum bend radius factor of 7.5 x OD for fixed installations and 8 x OD for flexible applications. This cable is sold by the foot under MPN CF140US-25-18.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PVC, Order by the Foot, Gray |
| Brand | CHAINFLEX |
| Shielding | Shielded |
| Conductors | 12 |
| Conductor Size | 14 AWG |
| Manufacturer Part Number | CF140US-25-18 |
| Minimum Bend Radius Factor - Fixed | 7.5 x OD |
| Minimum Bend Radius Factor - Flexible | 8 x OD |
