Chainflex 3G-OTH-47205 — Technical Specifications

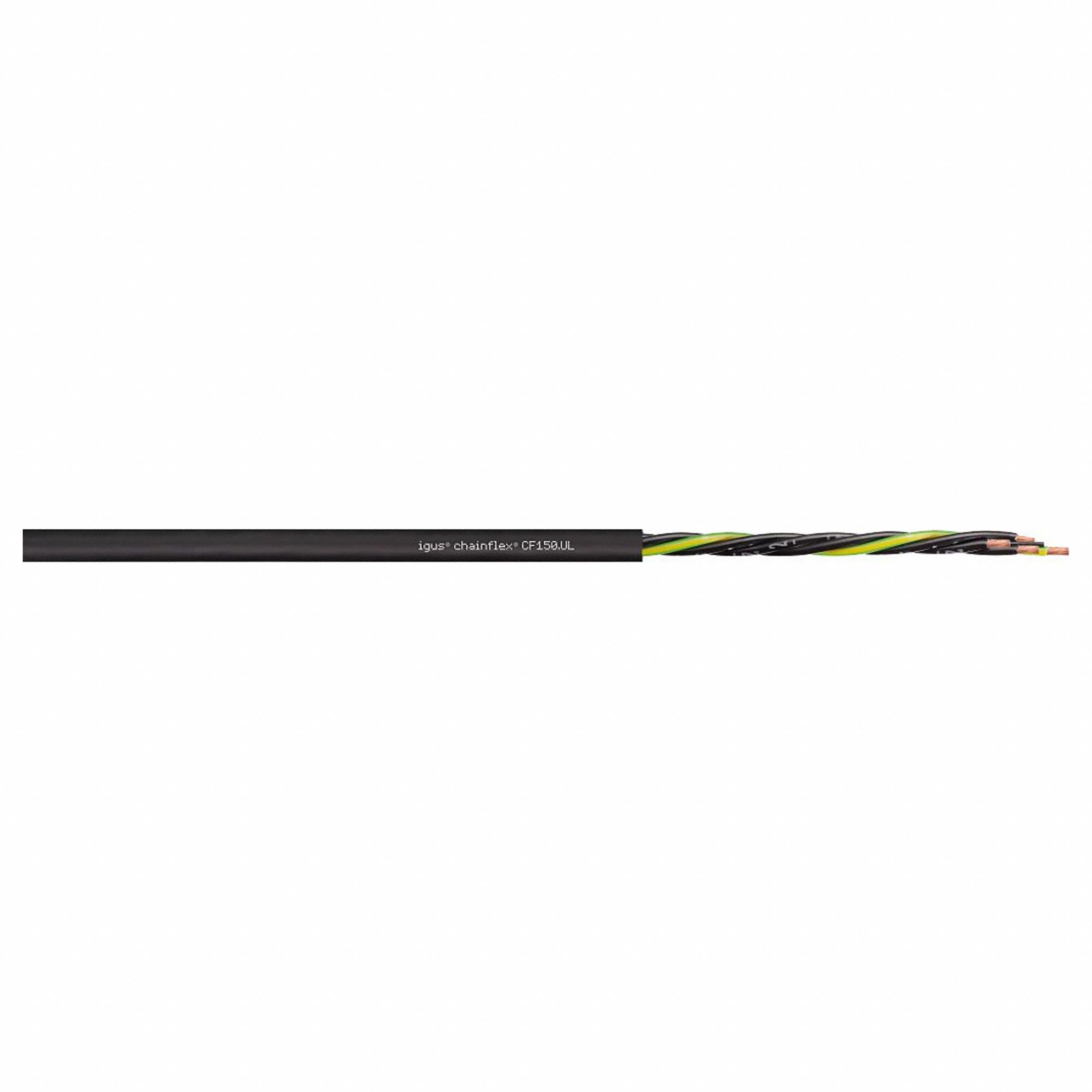

The CHAINFLEX Control Cable (MPN CF150-UL-10-07) is a continuous flexing exposed run tray cable with 7 conductors of 17 AWG, unshielded, and PVC insulation. It features a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications. This cable is sold by the foot and is designed for use in cable carrier systems requiring continuous flexing.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PVC, Order by the Foot, Black |
| Brand | CHAINFLEX |
| Shielding | Unshielded |
| Conductors | 7 |
| Conductor Size | 17 AWG |
| Manufacturer Part Number | CF150-UL-10-07 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - Flexible | 6 x OD |
