Chainflex 3G-OTH-49122 — Technical Specifications

Name: Chainflex 3G-OTH-49122 CHAINFLEX Control Cable: 17 AWG Conductor Size, 18 Conductors, PVC, Order by the Foot, Black (MPN CF150-UL-10-18). Key specifications — Conductor Size: 17 AWG; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Shielding: Unshielded; Brand: CHAINFLEX.
Brand: Chainflex

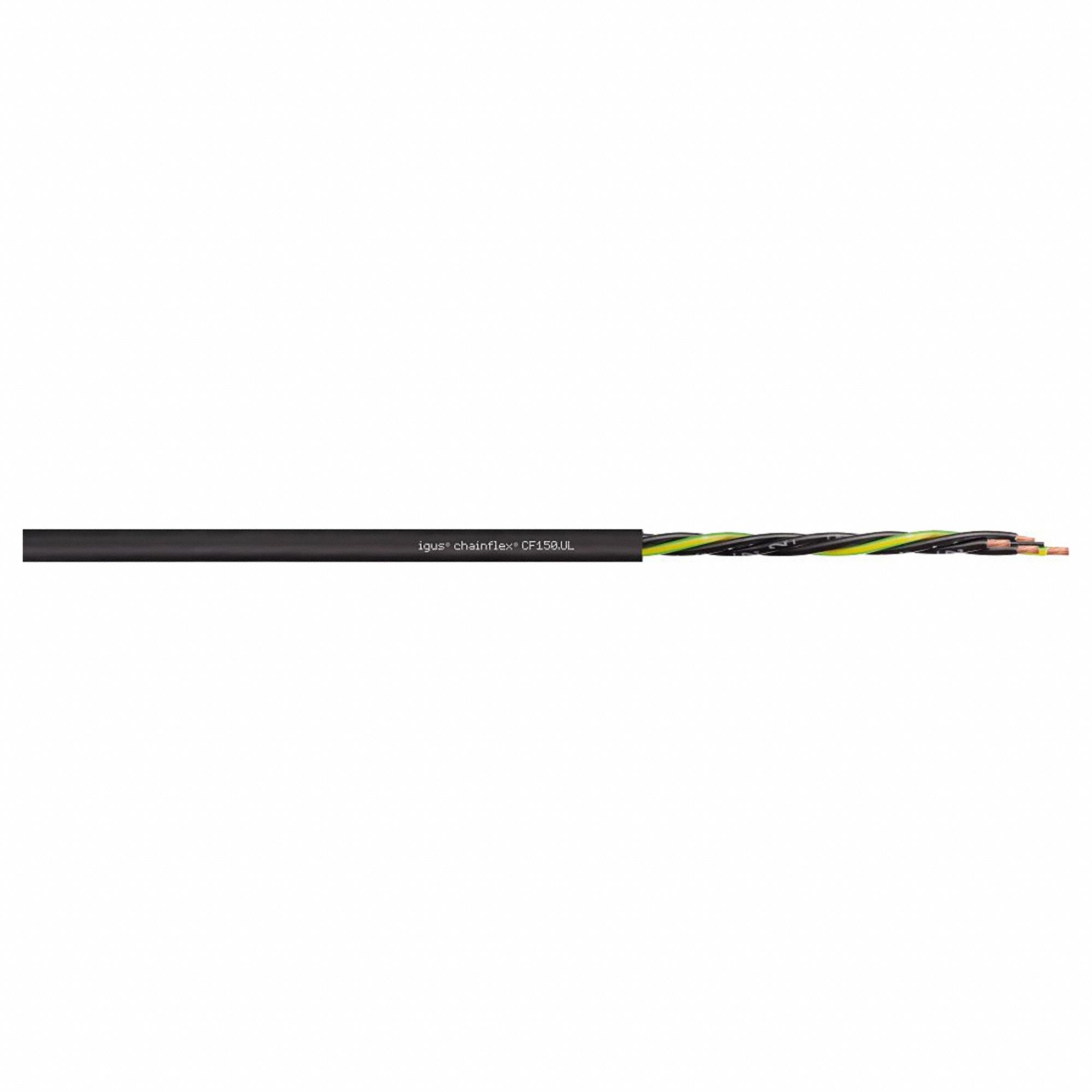

The CHAINFLEX Control Cable (MPN CF150-UL-10-18) is an unshielded continuous flexing exposed run tray cable with 18 conductors of 17 AWG size and PVC insulation. It features a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	PVC, Order by the Foot, Black
Brand	CHAINFLEX
Shielding	Unshielded
Conductors	18
Conductor Size	17 AWG
Manufacturer Part Number	CF150-UL-10-18
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
