Chainflex 3G-OTH-46420 — Technical Specifications

Name: Chainflex 3G-OTH-46420 CHAINFLEX Control Cable: 16 AWG Conductor Size, 4 Conductors, PVC, Order by the Foot, Black (MPN CF150-UL-15-04). Key specifications — Conductor Size: 16 AWG; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Shielding: Unshielded; Brand: CHAINFLEX.
Brand: Chainflex

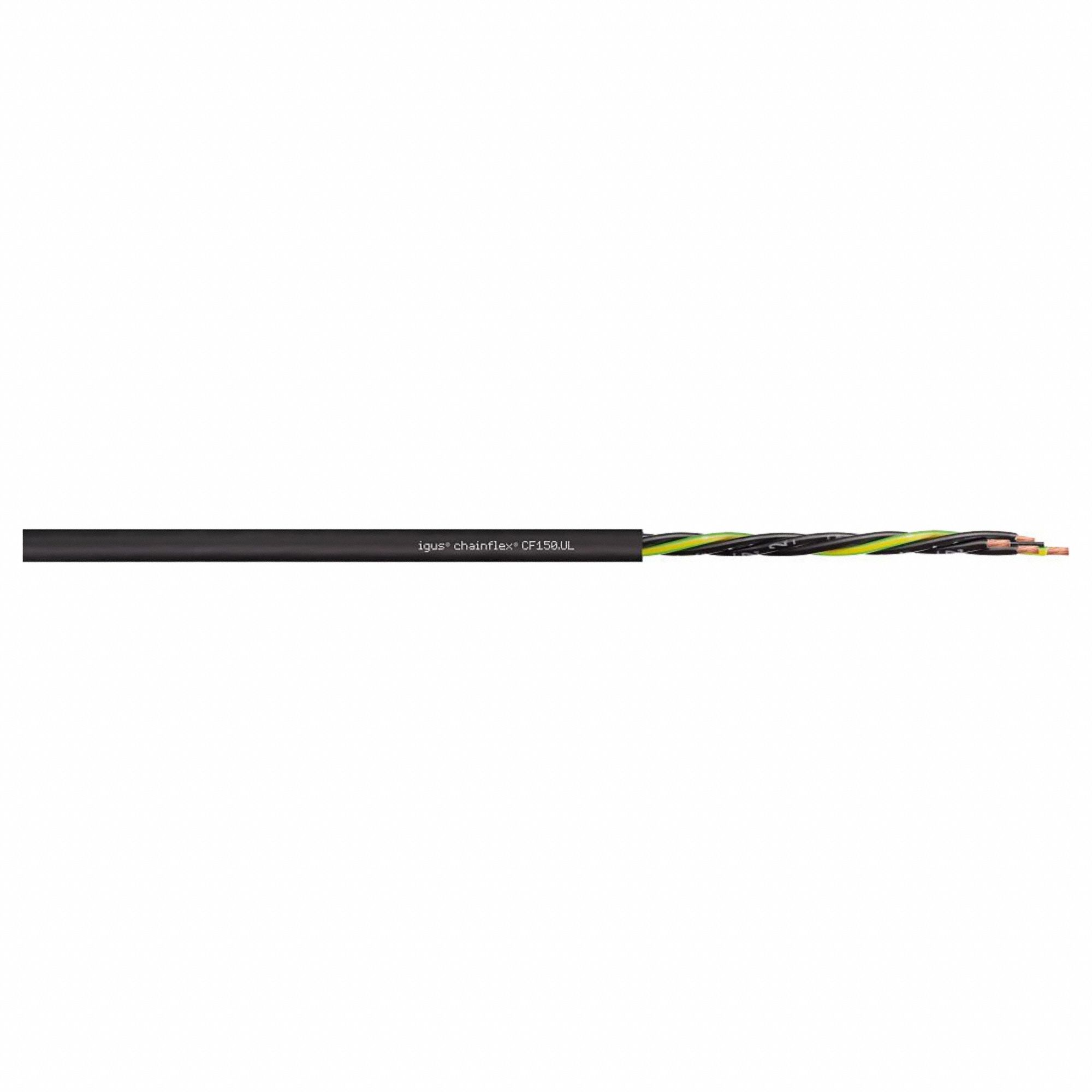

The CHAINFLEX Control Cable (MPN CF150-UL-15-04) is a continuous flexing exposed run tray cable with 16 AWG conductor size and 4 conductors. It is unshielded, features a PVC jacket, and is available in black. The cable has a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	PVC, Order by the Foot, Black
Brand	CHAINFLEX
Shielding	Unshielded
Conductors	4
Conductor Size	16 AWG
Manufacturer Part Number	CF150-UL-15-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
