Chainflex 3G-OTH-46516 — Technical Specifications

Name: Chainflex 3G-OTH-46516 CHAINFLEX Control Cable: 16 AWG Conductor Size, 5 Conductors, PVC, Order by the Foot, Black (MPN CF150-UL-15-05). Key specifications — Conductor Size: 16 AWG; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Shielding: Unshielded; Brand: CHAINFLEX.
Brand: Chainflex

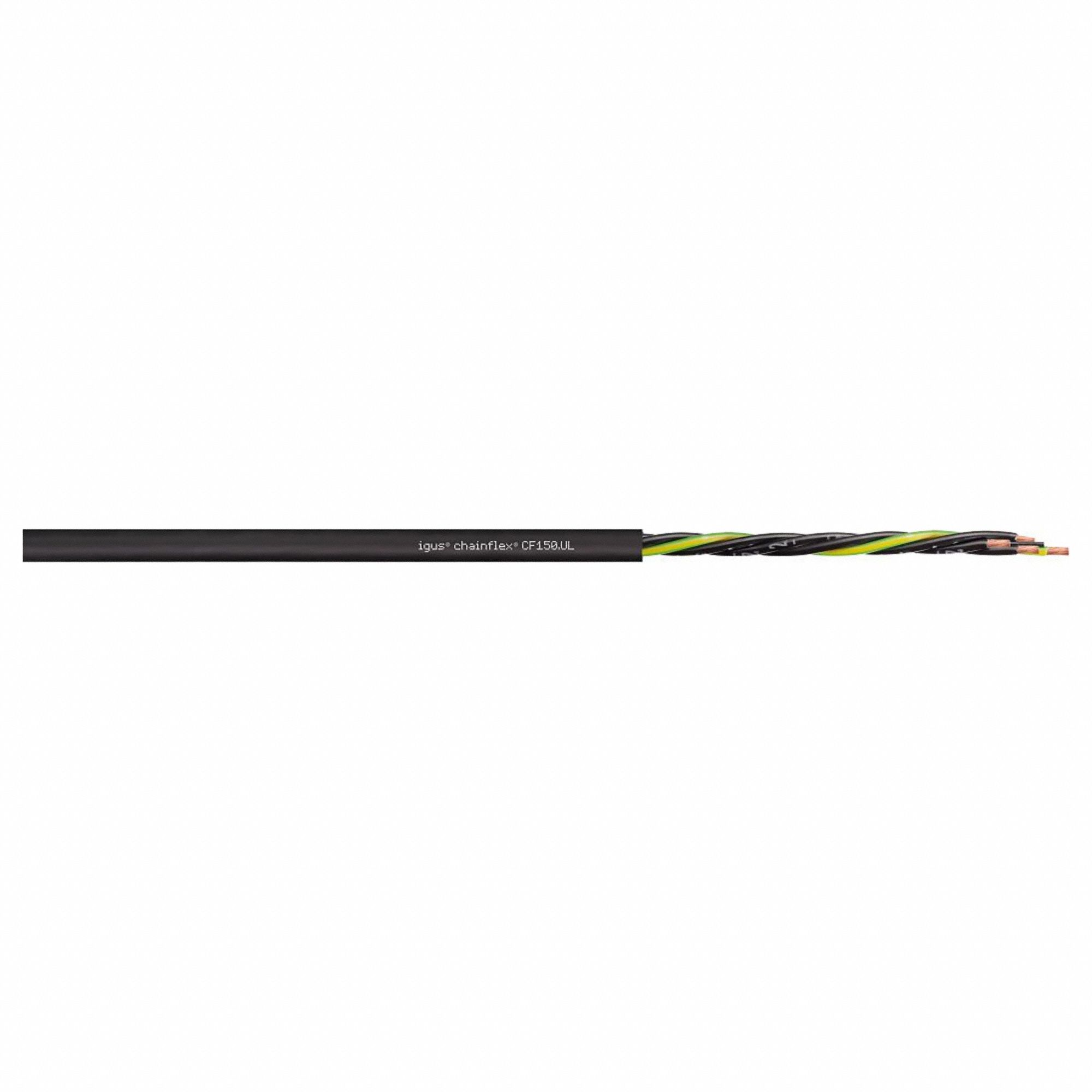

The CHAINFLEX Control Cable (SKU 801JF1, MPN CF150-UL-15-05) is a continuous flexing exposed run tray cable with 5 conductors of 16 AWG size, unshielded, and PVC insulation. It features a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications. This cable is sold by the foot and is designed for use in cable trays requiring continuous flexing.

View Product & Quote

Technical Specifications

Parameter	Value
Type	PVC, Order by the Foot, Black
Brand	CHAINFLEX
Shielding	Unshielded
Conductors	5
Conductor Size	16 AWG
Manufacturer Part Number	CF150-UL-15-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
