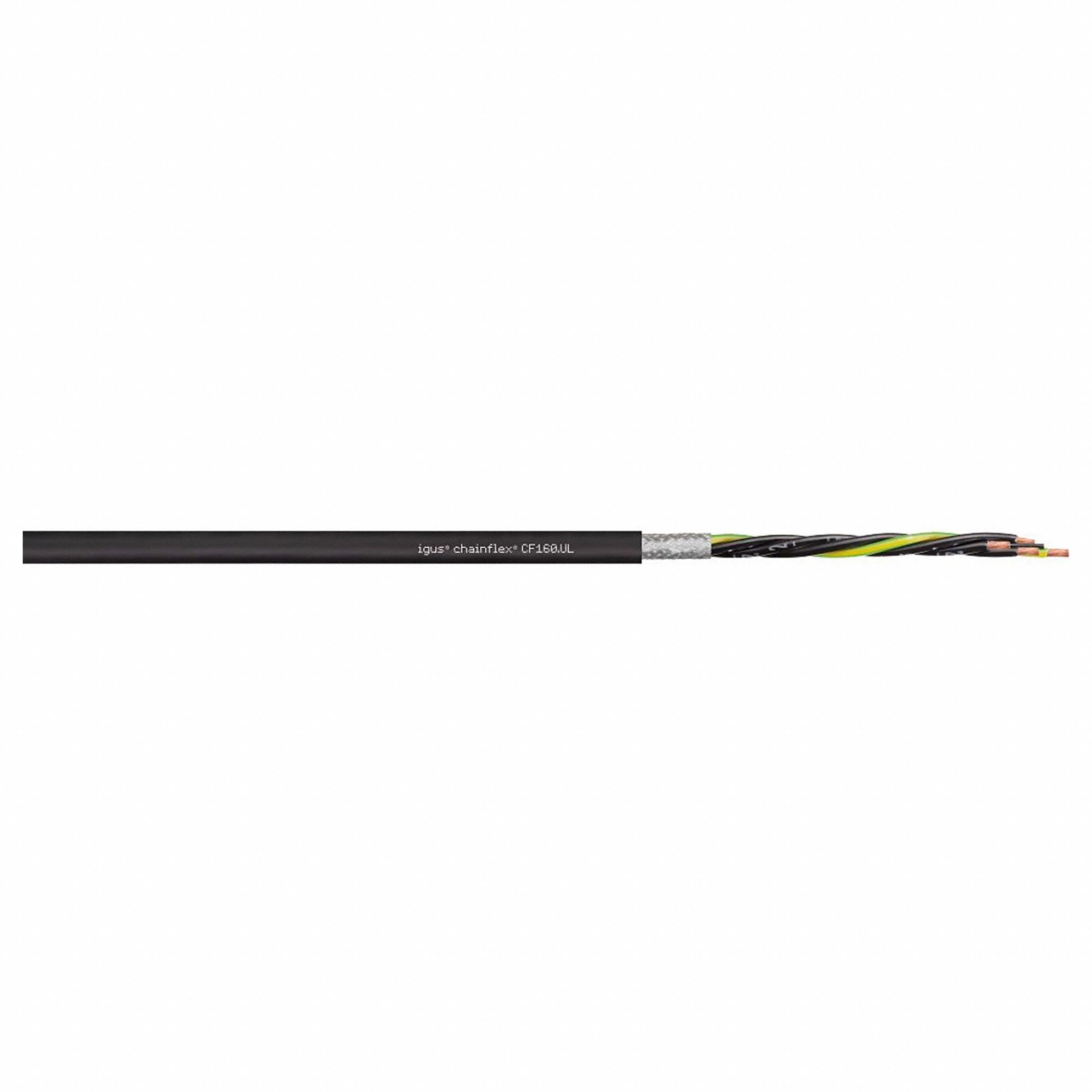

Chainflex 3G-OTH-49256 — Technical Specifications
The CHAINFLEX Control Cable (SKU 801JG1, MPN CF160-UL-10-03) is a shielded continuous flexing exposed run tray cable with 3 conductors of 17 AWG size and PVC insulation. It features a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications. This cable is sold by the foot and is designed for use in continuous-flexing environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PVC, Order by the Foot, Black |
| Brand | CHAINFLEX |
| Shielding | Shielded |
| Conductors | 3 |
| Conductor Size | 17 AWG |
| Manufacturer Part Number | CF160-UL-10-03 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - Flexible | 6 x OD |
