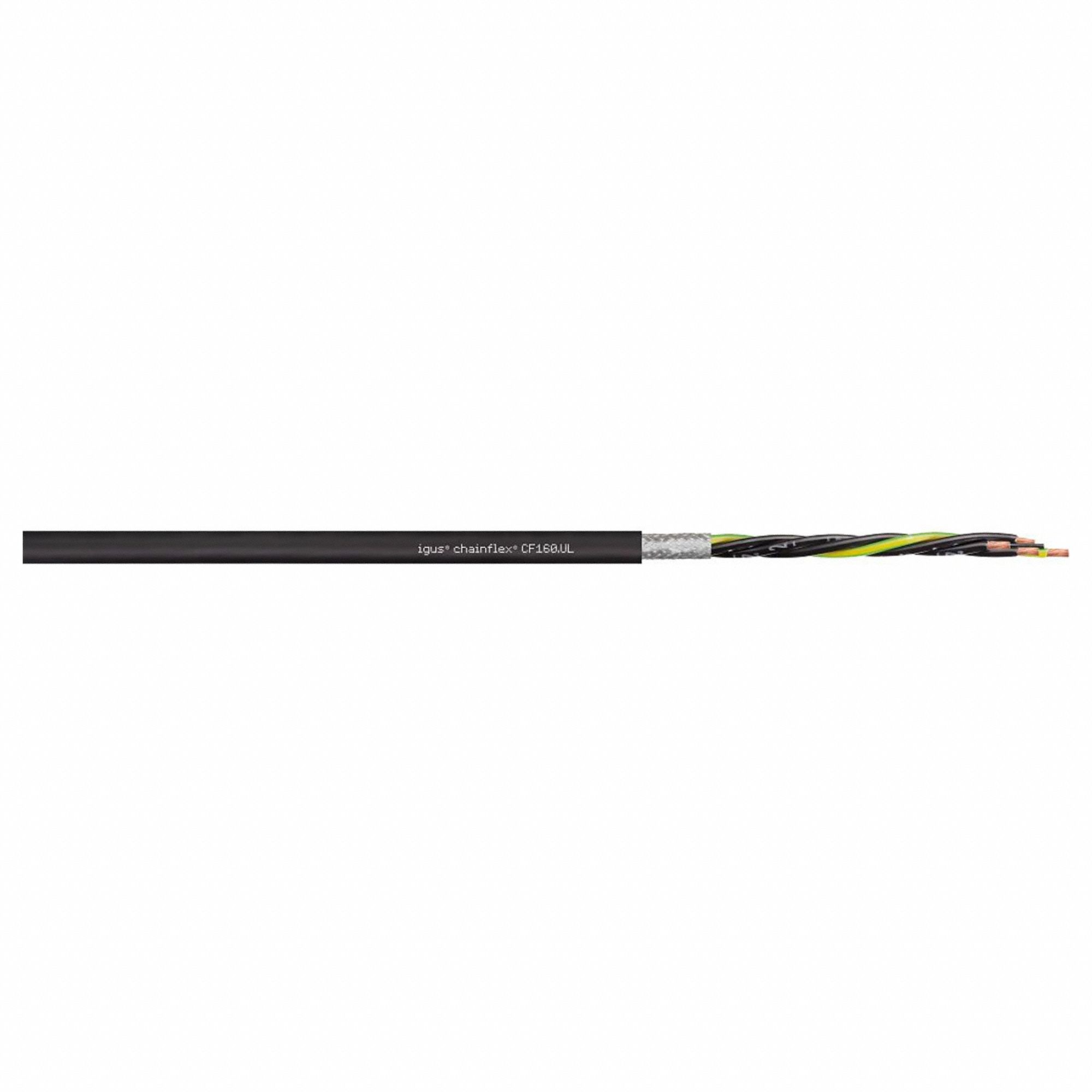

Chainflex 3G-OTH-47170 — Technical Specifications
The CHAINFLEX Control Cable (SKU 801JG2, MPN CF160-UL-10-04) is a shielded continuous flexing exposed run tray cable with 17 AWG conductor size and 4 conductors. It features a PVC jacket and is available in black, ordered by the foot. The cable has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible installation.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PVC, Order by the Foot, Black |
| Brand | CHAINFLEX |
| Shielding | Shielded |
| Conductors | 4 |
| Conductor Size | 17 AWG |
| Manufacturer Part Number | CF160-UL-10-04 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - Flexible | 6 x OD |
