Chainflex 3G-OTH-46858 — Technical Specifications

Name: Chainflex 3G-OTH-46858 CHAINFLEX Control Cable: 16 AWG Conductor Size, 18 Conductors, PVC, Order by the Foot, Black (MPN CF160-UL-15-18). Key specifications — Conductor Size: 16 AWG; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Shielding: Shielded; Brand: CHAINFLEX.
Brand: Chainflex

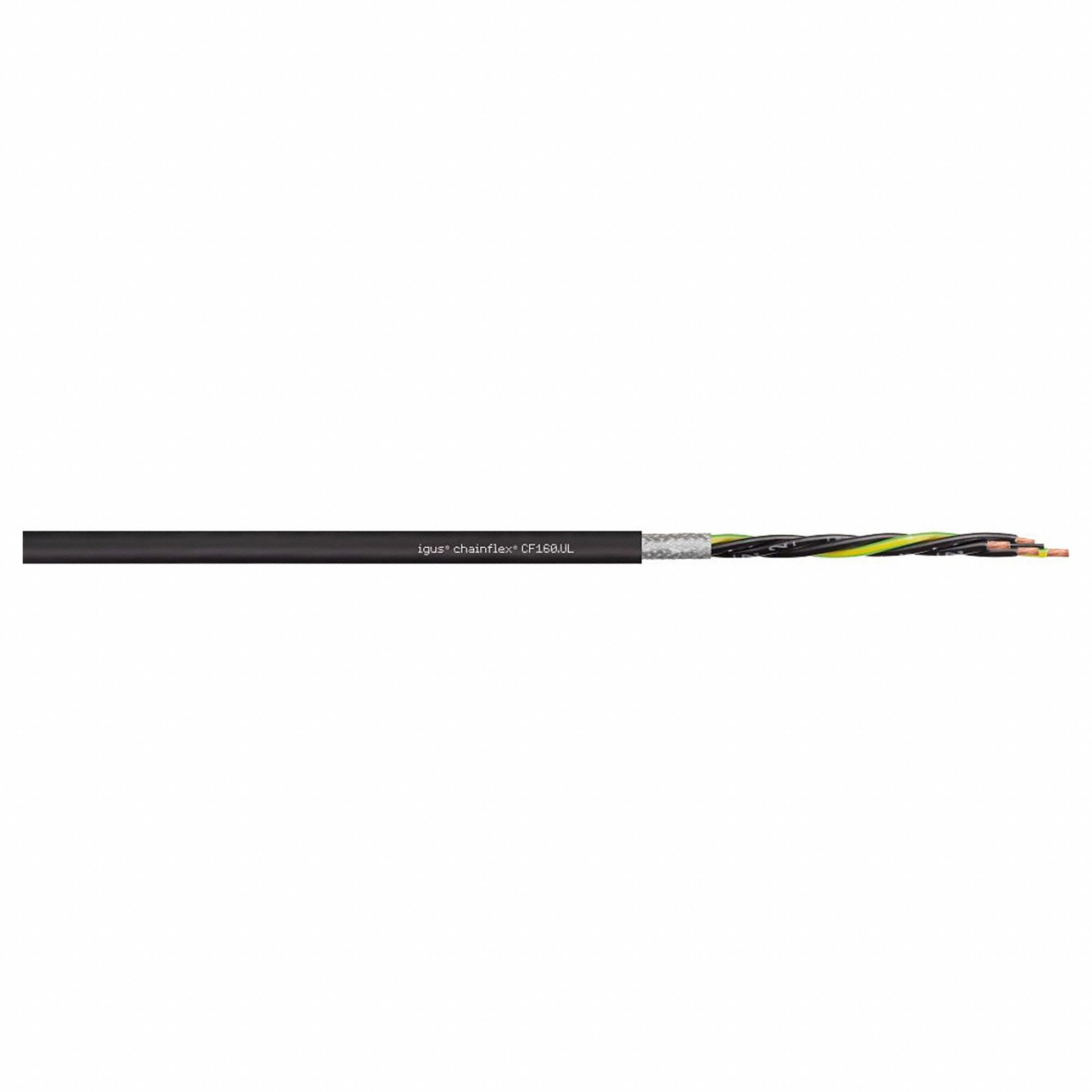

The CHAINFLEX Control Cable (MPN CF160-UL-15-18) is a shielded continuous flexing exposed run tray cable with 18 conductors of 16 AWG size. It features a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications. This PVC-jacketed cable is sold by the foot and is designed for use in cable carrier systems requiring continuous flexing.

View Product & Quote

Technical Specifications

Parameter	Value
Type	PVC, Order by the Foot, Black
Brand	CHAINFLEX
Shielding	Shielded
Conductors	18
Conductor Size	16 AWG
Manufacturer Part Number	CF160-UL-15-18
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
