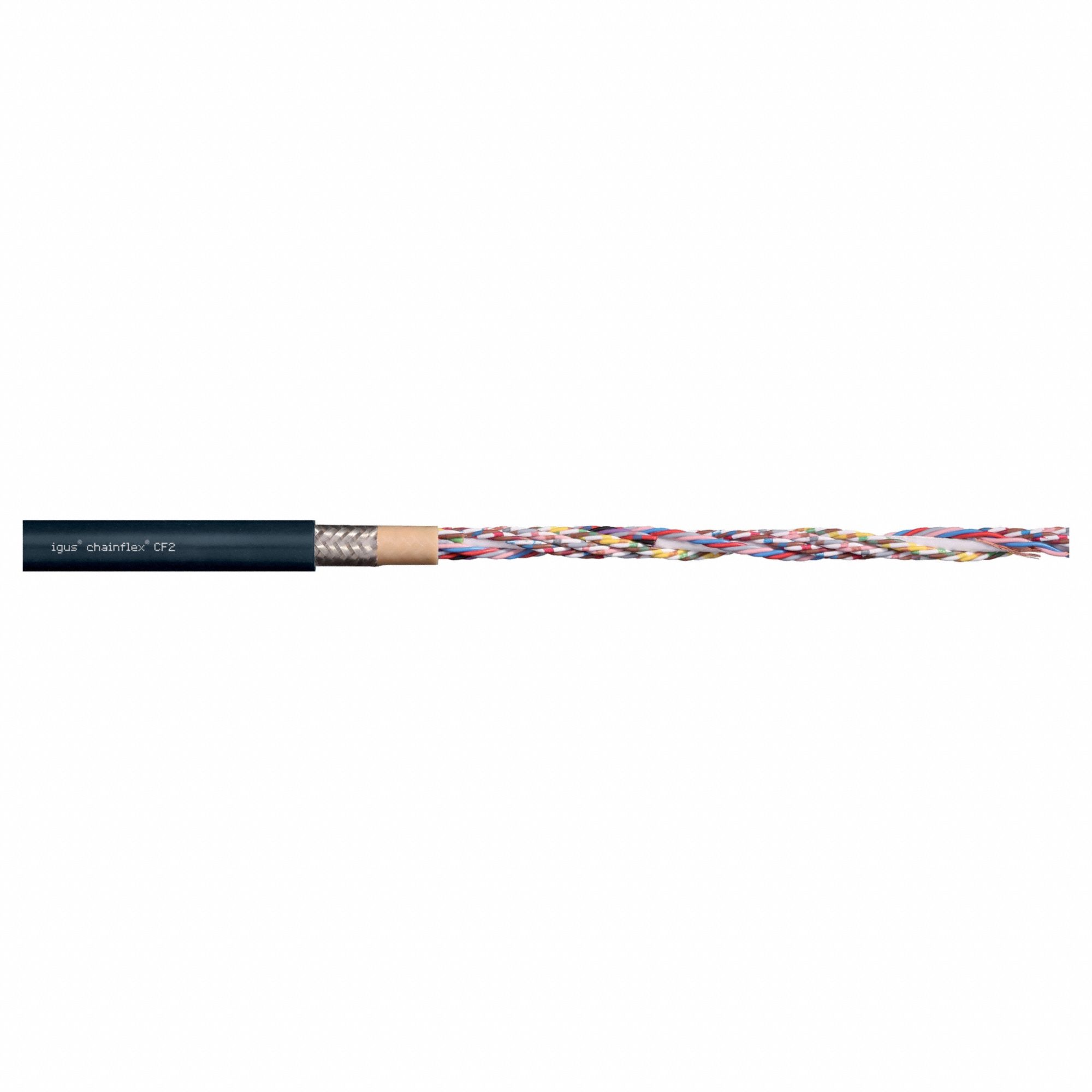

Chainflex 3G-OTH-54427 — Technical Specifications
The CHAINFLEX Control Cable: 26 AWG is a continuous flexing control cable from the CF2 series, featuring 8 conductors of single copper wire with a PUR jacket rated at 300 V. It is oil and grease resistant, with minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications, and does not include a ground.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Order by the Foot, PUR Jacket, 300 V |
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | CF27.07.05.02.01.D ISO Class 1 (Outer Jacket Material) |
| Conductors | 8 |
| Cable Series | CF2 |
| Product Type | Control Cable |
| Includes Ground | No |
| Conductor Material | Copper |
| Resistance Properties | Oil and Grease Resistant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF2-01-08 |
| Minimum Bend Radius Factor - Fixed | 3 x OD |
| Minimum Bend Radius Factor - E-Chain | 5 x OD |
| Minimum Bend Radius Factor - Flexible | 4 x OD |
