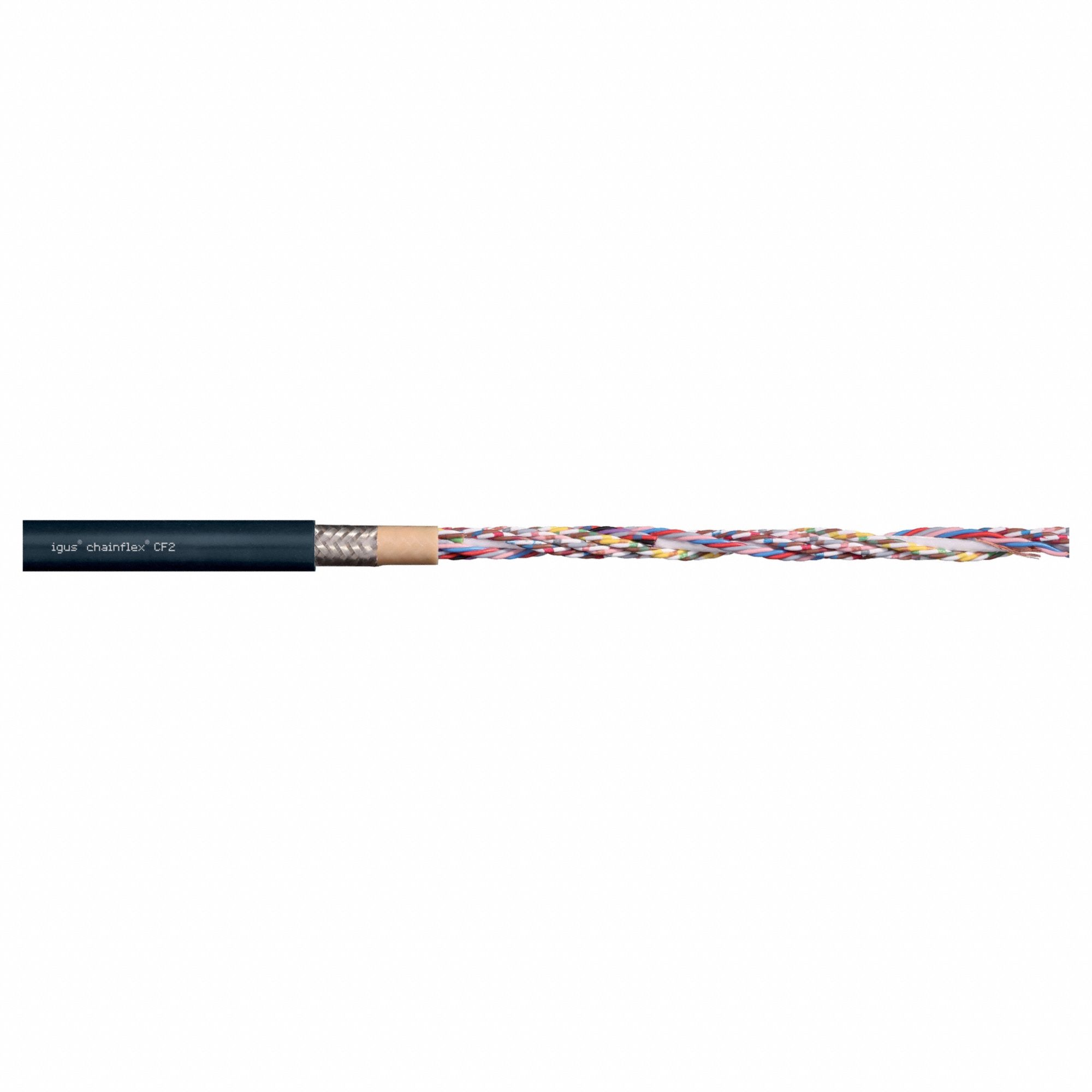

Chainflex 3G-OTH-54435 — Technical Specifications
The CHAINFLEX Control Cable: 24 AWG is a continuous flexing control cable from the CF2 series, featuring 24 conductors, a PUR jacket, and a 300 V rating. It is constructed with copper conductors, is coolant resistant, and complies with NFPA 79-2012 Chapter 12.9. The cable offers minimum bend radius factors of 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications, and does not include a ground conductor.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Order by the Foot, PUR Jacket, 300 V |
| Brand | CHAINFLEX |
| Standards | NFPA 79-2012 Chapter 12.9 |
| Conductors | 24 |
| Cable Series | CF2 |
| Product Type | Control Cable |
| Includes Ground | No |
| Conductor Material | Copper |
| Resistance Properties | Coolant Resistant |
| Manufacturer Part Number | CF2-02-24 |
| Minimum Bend Radius Factor - Fixed | 3 x OD |
| Minimum Bend Radius Factor - E-Chain | 5 x OD |
| Minimum Bend Radius Factor - Flexible | 4 x OD |
